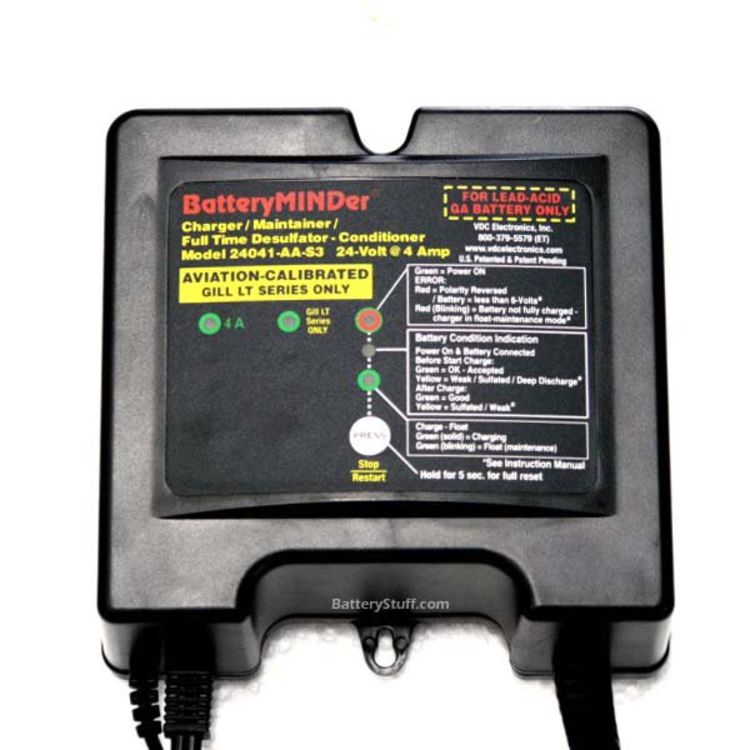

Battery MINDer 24v Gill LT Aircraft Charger BM24041AA-S3

BM24041-AA-S3
$189.99 - No Tax
This item qualities for
$7.50 Flat Rate Shipping*
Out of Stock

This product has been discontinued and replaced by the Battery MINDer 244CEC1-AA-S3.

Share this item with your friends

Product InformationStore Part Number: BM24041-AA-S3

Overview

Battery MINDer Charger/Maintainer/Desulfator-Conditioner–Charges, maintains, and conditions 24 volt Gill LT aircraft batteries. Four amps of available charge current combined with a unique patented Pulse Mode circuitry that restores older batteries that are noticeably declining in performance caused by sulfation. This is an excellent unit for all types of Gill LT Aircraft lead acid and Gel batteries. Up to 200% faster charging than conventional constant voltage chargers. For use in long term battery storage/maintenance mode, will not overcharge batteries.

The Battery MINDer is a 3-stage charger/maintainer/desulfator-conditioner that extends performance and life of 24 Volt aircraft lead acid batteries. These include maintenance-free sealed Gill LT dry cell and AGM batteries.

Battery MINDer is highly recommended for batteries that have be neglected and abused.

Each Battery MINDer ships with one set of alligator clips.
Specific for GILL LT batteries ONLY.

Features

  • Maximizes life and performance of Aircraft Lead Acid Batteries regardless of size/type/brand.
  • Automatically detects defective batteries and rejects them.
  • Plug and Run design eliminates any user error. Simply plug it in and hook it up.
  • Watertight enclosure with conformal-coated protected circuitry.
  • Automatically detects defective batteries and rejects them.
  • Plug and Run design eliminates any user error. Simply plug it in and hook it up.
  • Watertight enclosure with conformal-coated protected circuitry.
  • Built-in battery indicators: charge level / charge retention /sulphation indicator.
  • Automatic temperature compensation w/standard battery temperature sensor
  • Full time random sweep desulphation
  • Polarity reversal error indicator
  • Portable or Onboard mountable
  • AC cord 6 feet, DC cord 8 feet overall with supplied connectors
  • Optimal 3 Step Charging
  • Built-in Mode Indicators
  • Spark Free Hook Up
  • Demand Sensing
  • Reverse Polarity Protection
  • Over Voltage Protected
  • Short Circuit Protection
  • Overload Protection
  • Line Regulation
  • Load Regulation
  • Thermal Protection
  • Temperature Compensation
  • 5 year Warranty

Comments

BM24041AA-S3 is set specifically for the Gill LT series battery. * Flat Rate shipping is for the lower 48 states only.

Recommend Accessories
Battery MINDer Temperature Probe
BATMINDprobe
Battery Minder Extension Cable Temperature Probe is designed to attach to the battery and monitor the battery temperature. Battery Minder will adjust the charger voltage to protect against overcharge and undercharge during temperature extremes.


Tech Specs

  • Dimensions (LxWxH): 5.5 x 5.5 x 2.25 in
  • Weight: 2.2 lb
  • Shipping Weight: 4 lb
  • DC Output Amps: 4 A
  • Max Current, During Bulk Charge: 4 A
  • Output Voltage Charging: 27.2-30.8 Temp variable
  • Output Voltage Maintenance: 25.6-29.0 temp variable
  • Absorption Voltage: Dependant on Ambient Temp
  • AC Input Amps: 1.8 A
  • AC Input Volts: 110 VAC
  • Model: 24041-AA-S3
  • Manufacturer: BatteryMINDer/VDC Electronics
  • AC Input Volts Range: 90–140 V
  • Desulphation Pulse: 100+/- 10 Hz
  • Charge Voltage: temperature variable
  • Float Current: temperature variable
  • Float Voltage: temperature variable
  • Storage Temperature: -10 ° to 80 °C
  • Output Banks: 1
  • Temperature Compensation: Included Temp sensor
  • Recommended Use: Gil LT Aircraft batteries
  • Ripple: 65mA (AC)
  • Manufacturer Part #: BM24041-AA-S3
  • Made In: Asia
