Overview

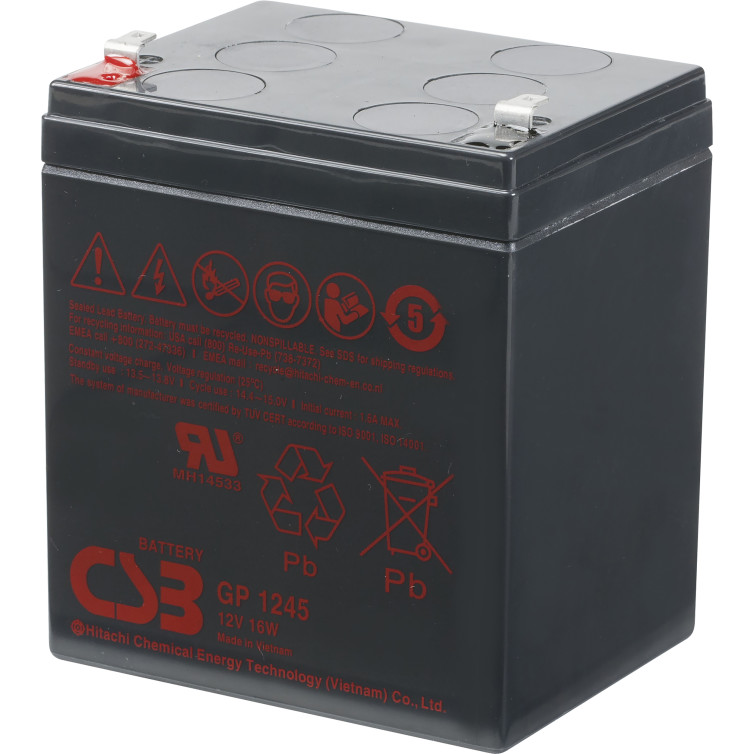

The CSB GP1245 is a general-purpose battery that ships with F1 Terminal Tabs and is designed to last up to 5 years in standby service. As with all CSB batteries the GP1245 is a rechargeable sealed lead acid battery, and is highly efficient battery with a leak proof maintenance free design.
NON-SPILLABLE by DOT (Department of Transportation), ICAO (International Civil Airline Organization) and IATA (International Airline Transportation Association) definitions.
Features
- Maintenance-Free Sealed Lead Acid Battery
- Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% (often referenced as Gel Cell)
- Leak Proof/Spill Proof
- F1 Terminals
- Low Self Discharge: Less than 10% after 90 days, can be stored up to 6 months at 25°C (77°F).
Technical Specifications
- Dimensions (LxWxH): 3.54 x 2.76 x 4.01 in
- Terminal Height: 4.18
- Weight: 2.95 lb
- Maximum Charging Current: 1.6 A
- DC Output Voltage: 12 V
- Amp/Hr: 4.5
- Cycle Charging Voltage: 14.4-15.0 V
- Charging Voltage Standby Use: 13.5 to 13.8 V
- Internal Resistance: 29.8mΩ
- Warranty: 1 Year
- Shipping Weight: 4 lb
- Made in: Asia
- Manufacturer: CSB Battery
- Manufacturer’s Part Number: GP 1245 F1
- Model: GP1245-F1
