Important NoticeOverview
MK batteries are manufactured under the most versatile computer control battery formation system and technology to achieve the highest quality. The automated, computer controlled system provides programmed functions for steps of current, time, voltage, temperature and event control to match the performance specifications of your application requirements.
NON-SPILLABLE by DOT (Department of Transportation), ICAO (International Commercial Airline Organization) and IATA (International Airline Transportation Association) definitions.
Features
- Maintenance Free
- Valve Regulated
- Used in Multiple Applications
- Float and Cycle Use
- High Discharge Rate
- Absorbed Glass Mat (often referenced as Gel Cell)
- Leak Proof/Spill Proof
- Tank formed plates
- Temperature control formation
- Constant current formation
- High quality battery/better uniformity
- Constant voltage formation
Technical Specifications
- Dimensions (LxWxH): 6.54 x 6.89 x 4.92 in
- Weight: 20.46 lb
- DC Output Voltage: 12 V
- Amp/Hr: 26 AH
- 20 Hour Rate (1.3A to 10.50V): 26 AH
- 10 Hour Rate (2.47A to 10.50V): 24.7 AH
- 5 Hour Rate (4.42A to 10.20V): 22.1 AH
- 1C (26A to 9.60V): 14.73 AH
- 3C (78A to 9.60V): 10.4 AH
- Internal Resistance (at 1KHz): Approx. 11 mΩ
- Maximum Discharge Current for 5 Seconds: 390 A
- Operating Temperature Range: Charge/Storage: -15°C (5°F) to 40°C (104°F) ; Discharge: -15°C (5°F) to 50°C (122°F)
- Charge Retention (shelf life) at 20°C (68°F): 1-Month: 92% ; 3-Months: 90% ; 6-Months: 80%
- Maximum Charging Current: 7.8A
- Cycle Charging Voltage: 14.4 - 15.0 volts
- Float Charging Voltage: 13.5 - 13.8 volts
- Shipping Weight: 23 lb
- Made in: Asia
- Manufacturer: MK, East Penn, Deka
- Manufacturer’s Part Number: ES26-12

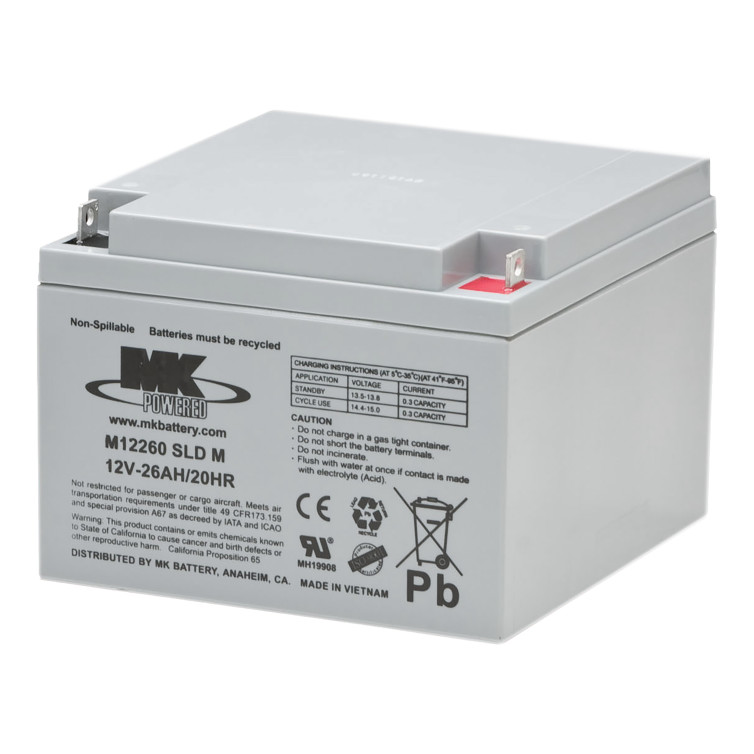

- Model: M12260 SLD M
- Polarity:
