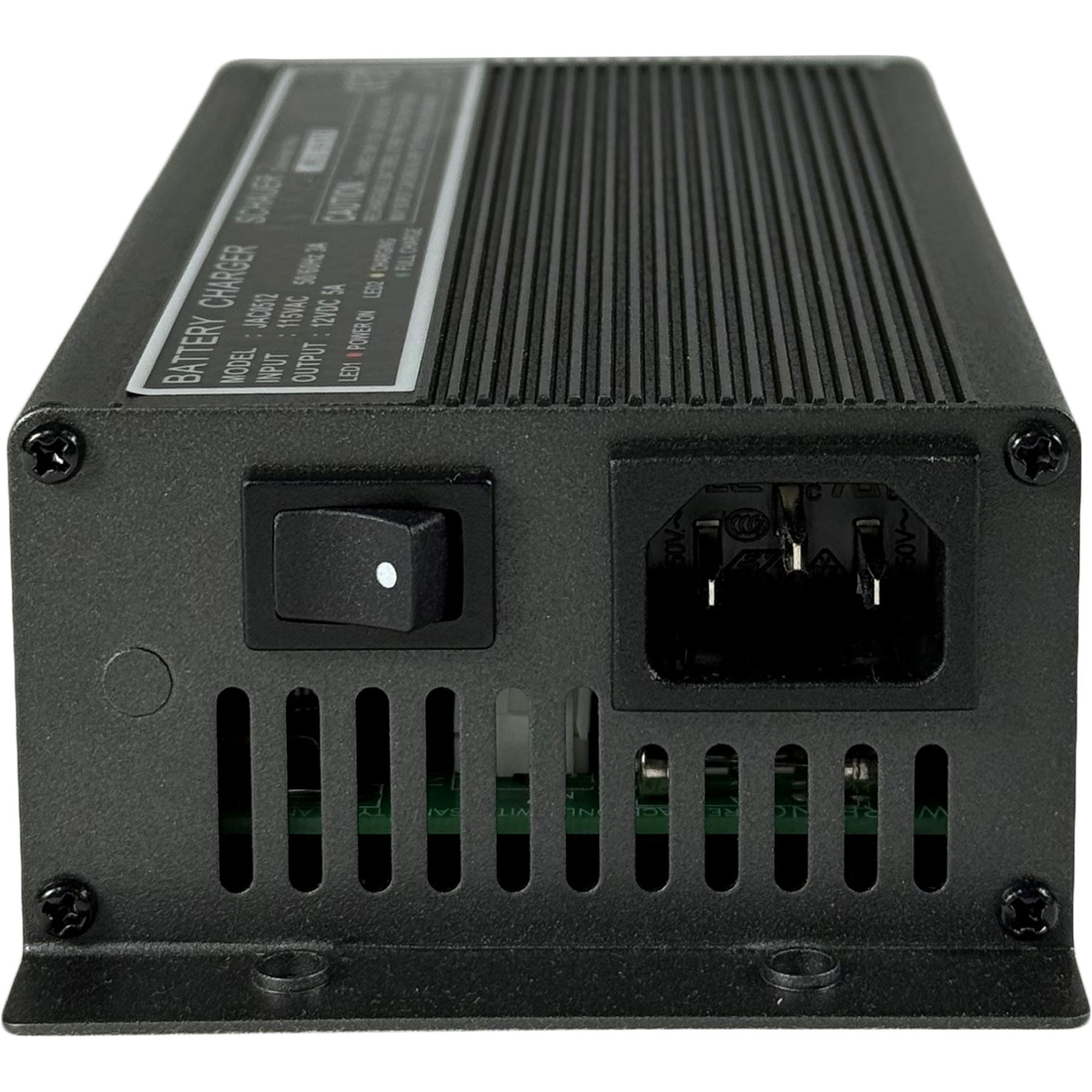

Japlar Schauer 12v 5 Amp Automatic Smart Charger
Sale Price: $84.95
OR Simple-Click Checkout
Product InformationStore Part Number: JAC0891-49
Replaces: Soneil 1212SR
Schauer Fully Automatic Constant Current Electronic Charger charges faster and more accurately than conventional chargers. Charge control is constant current charge to a constant voltage and then to a float standby. The float charge holds the battery at 100% ready state. The charger can be left on indefinitely without worry of undercharge or overcharge.
The JAC Series charger will act as a power supply in conjunction with a battery hook up.
Soft Start and Stop: Starts and stops gradually. No sudden in-rush of current. This protects both the batteries and any other circuits connected to the charger.
Stage 1: Constant Current Mode (CC)
The charger changes to constant current 5.0 A. When the battery voltage reaches up to 14.6 V, the charging stage changes from (CC) Constant Current to CV (Constant Voltage) mode.
Stage 2: Constant Voltage Mode (CV)
The charger holds the battery at 14.6 V and the current slowly reduces. The moment the current reaches 0.5 C (C= Battery Capacity), is called the Switching Point. The Switching Point is one of the great features of this battery charger that it can adjust the current automatically according to the battery capacity. Other chargers without microprocessors are not capable to adjust the current automatically.
Stage 3: Standby Voltage Mode
The charger maintains the battery voltage at 13.5 V and current slowly reduces to zero. Charger can be left connected indefinitely without harming the battery.

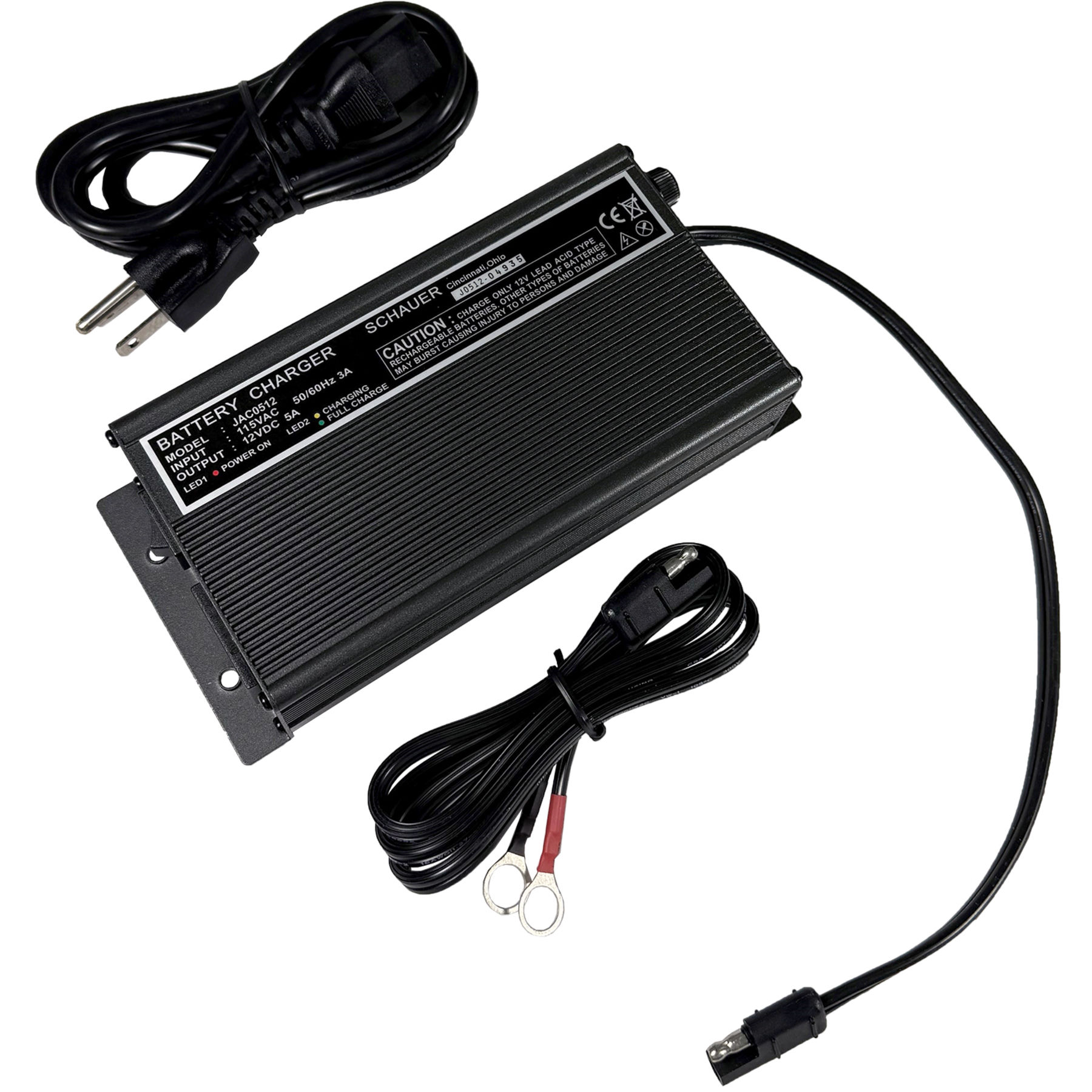

This charger typically ships with ring type connectors, allowing the customer to adapt the charger to their specific needs.
- Totally Automatic Switch-Mode Battery Charger
- Suitable for Sealed (AGM) and Wet Lead Acid Batteries
- Automatic cutoff and then true lloat. Can be left connected indefinitely without harming the battery.

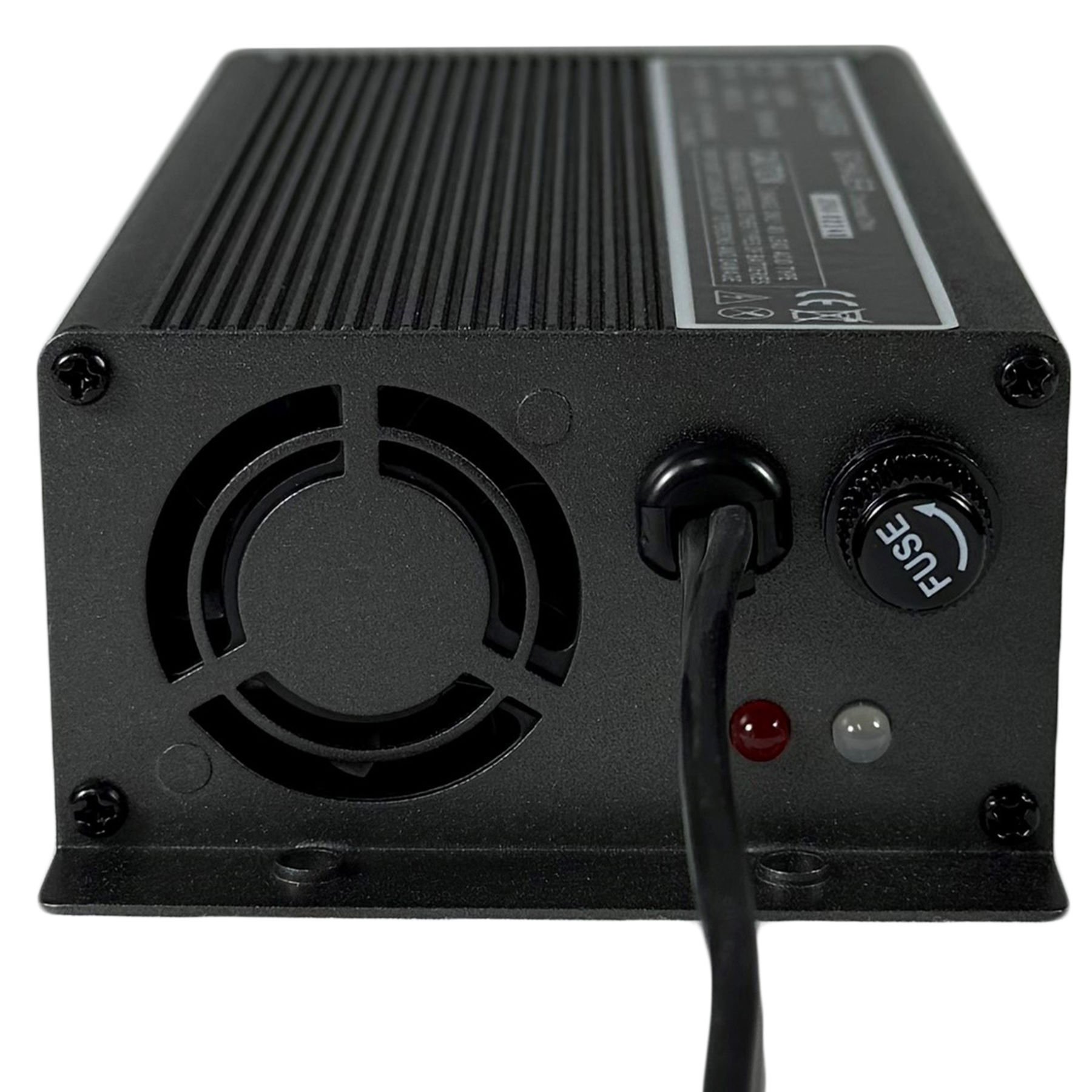

- Two-color LED to indicate charge status
- Mean Time between failures 30,000 hours
- Zero Current Drain when AC power is off
- Fan-cooled circuitry
- Optimal 3-Step Charging
- Built-in Mode Indicators
- Reverse Polarity Protection
- Over Voltage Protected
- Short Circuit Protection
- Overload Protection
- Fan Control
- Thermal Protection
- 2 Year Warranty
Not for True Gel batteries. Schauer Fully Automatic Constant Current Electronic Charger charges faster and more accurately than conventional chargers. Charge control is constant current charge to a constant voltage and then to a float standby. The float charge holds the battery at 100% ready state. The charger can be left on indefinitely without worry of undercharge or overcharge.
- Dimensions (LxWxH): 7.0 x 3.5 x 1.8 in
- Weight: 2.2 lb
- Shipping Weight: 3 lb
- Max Current, During Bulk Charge: 5 A
- Absorption Voltage: 14.6 V
- AC Input Volts Freq.: 50/60 Hz
- Model: JAC0512R
- Manufacturer: Japlar Schauer
- AC Input Volts Range: 115-240 VAC
- Float Voltage: 13.5 V
- Enclosure: Aluminum Case
- Output Banks: 1
- Regulatory Approval: CE, UL Listed
- Manufacturer Part #: JAC0891-49
- Made In: Asia
