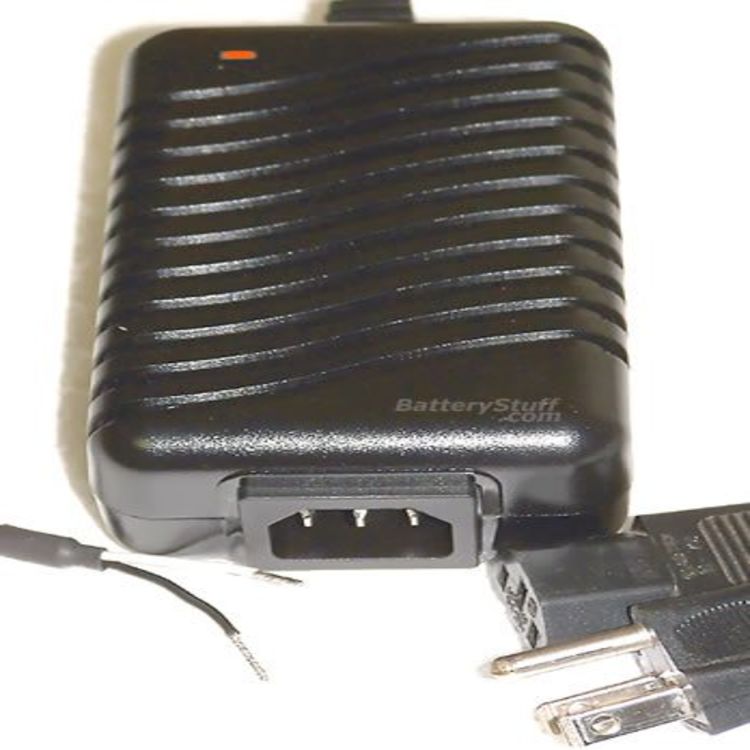

Soneil 2403SRN | Soneil 24v 1.5 Amp Constant Current World Smart Charger

PART NUMBER: 2403SRN
zoom photos Soneil 2403SRN | Soneil 24v 1.5 Amp Constant Current World Smart Charger
Soneil 2403SRN | Soneil 24v 1.5 Amp Constant Current World Smart Charger Soneil 2403SRN | Soneil 24v 1.5 Amp Constant Current World Smart Charger Soneil 2403SRN | Soneil 24v 1.5 Amp Constant Current World Smart Charger
Soneil 2403SRN | Soneil 24v 1.5 Amp Constant Current World Smart Charger Soneil 2403SRN | Soneil 24v 1.5 Amp Constant Current World Smart Charger Soneil 2403SRN | Soneil 24v 1.5 Amp Constant Current World Smart Charger
Soneil 2403SRN | Soneil 24v 1.5 Amp Constant Current World Smart Charger Soneil 2403SRN | Soneil 24v 1.5 Amp Constant Current World Smart Charger Soneil 2403SRN | Soneil 24v 1.5 Amp Constant Current World Smart Charger
Share this item
share Soneil 2403SRN | Soneil 24v 1.5 Amp Constant Current World Smart Charger on Facebook share Soneil 2403SRN | Soneil 24v 1.5 Amp Constant Current World Smart Charger on Twitter share Soneil 2403SRN | Soneil 24v 1.5 Amp Constant Current World Smart Charger on Pinterest

Soneil 2403SRN | Soneil 24v 1.5 Amp Constant Current World Smart Charger

PART NUMBER: 2403SRN
Free Ground Shipping to Lower 48 States *
$7295 Currently in Stock
Link copied to clipboard
Visa
mastercard
discover
american express
PayPal

OR

  • Optimal 3 Step Charging
  • Built-in Mode Indicators
  • Demand Sensing
  • Reverse Polarity Protection
  • Over Voltage Protected
  • Part Number: 2403SRN

Overview

The Soneil 2403SRN is a 24v 1.5 amp consant current world smart charger. The 2403SRN features 4-stage smart charging and a wide AC range of 100-240 VAC making this charger worldwide compatible.

Soneil’s Battery Charger transforms the 115/230 VAC into 24 VDC at about 100,000 Hz (1667 times faster than conventional charger), which requires a much smaller transformer and this results in a unit of smaller size, low weight and improved efficiency. The 2403SRN uses sophisticated electronic circuitry with microchips. All present day computers use switch-mode technology.

Multi Stage charging cycle

  • Stage 1: Deep Discharge Charging Pulse Mode: The Charger starts charging at 0.5V and give pulse current up to 5V. This has effect of removing loose sulphation formed during deep discharge state of the battery.
  • Stage 2: Constant Current Mode (CC): The charger changes to constant current 1.5A. When the battery voltage reaches up to 28.8V, the charging stage changes from (CC) Constant Current to CV (Constant Voltage) mode.
  • Stage 3: Constant Voltage Mode (CV): The charger holds the battery at 28.8V and the current slowly reduces. When the current reaches at 0.5 C (C= Battery Capacity), this point called the Switching Point. The Switching Point is one of the great features of this battery charger that it can adjust the current automatically according to the battery capacity. Other chargers without microprocessors are not capable to adjust the current automatically.
  • Stage 4: Standby Voltage Mode: The charger maintains the battery voltage at 27.6V and current slowly reduces to zero. Charger can be left connected indefinitely without harming the battery.
  • Recharging: If the battery voltage drops to 27.6V, the charger changes from any mode to Constant Current mode and restart charging. The charging cycle will go through Stage 2 to Stage 4.

Protection provided: Reverse Polarity, Short Circuit, Over-Voltage, Over Current and AC Surge. Soft Start and Stop; Starts and stops gradually. No sudden in-rush of current. This protects both the batteries and any other circuits connected to the charger.

This charger typically ships without output connectors, allowing customer to adapt the charger to their specific needs.

Features

  • Totally Automatic Switch-Mode Battery Charger
  • Suitable for Gel, Sealed (AGM) and Wet Lead Acid Batteries
  • Suitable for use anywhere in the world.
  • Input 115/230 VAC (range 90 VAC to 264 VAC) (47-63 Hz)
  • Automatic Cut Off and then True Float. Can be left connected indefinitely without harming the battery.
  • Two color LED to indicate charge status
  • UL, CSA, CE, TUV, GS and T-mark (Japan) Listed
  • Meets FCC Class B; EN55022 Class B
  • Mean Time between failures 50,000 hours
  • Zero Current Drain when AC power is off
  • Optimal 3 Step Charging
  • Built-in Mode Indicators
  • Demand Sensing
  • Reverse Polarity Protection
  • Over Voltage Protected
  • Short Circuit Protection
  • Overload Protection
  • 1 year Warranty

This Product Replaces These Other Products

Works In

Vehicles that 2403SRN works in

Technical Specifications

  • Dimensions (LxWxH): 4.7 x 2.7 x 1.6 in
  • Weight: 0.9 lb
  • Max Current, During Bulk Charge: 1.5 A
  • Absorption Voltage: 28.8 V
  • AC Input Volts: 115/230 V
  • AC Input Volts Freq.: 47/63 Hz
  • AC Input Volts Range: 90-264 V
  • Float Voltage: 27.6 V
  • Charge Reset: Battery Voltage Threshold: Below 27.6 V
  • Output Banks: 1
  • Warranty: 1 year
  • Regulatory Approval: UL, CSA, CE, TUV, GS and T-mark (Japan) Listed
  • Shipping Weight: 2.0 lb
  • Made in: China
  • Manufacturer: Soneil
  • Manufacturer’s Part Number: 2403SRN
  • Model: 2403SRN
