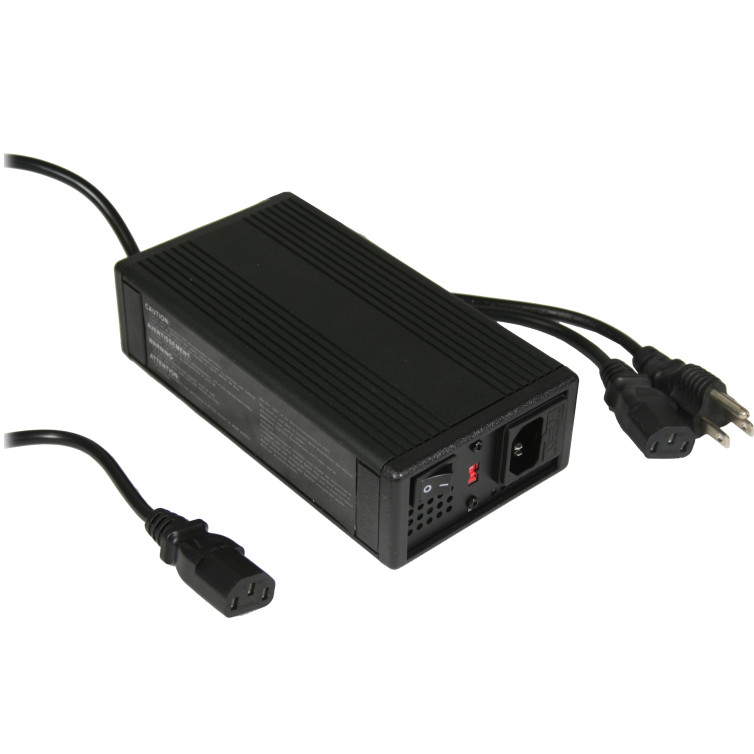

Soneil 48v 3.5 Amp Constant Current World Smart Charger
Soneil 48v 3.5 Amp Constant Current World Smart Charger
Soneil 48v 3.5 Amp Constant Current World Smart Charger
Share this item
share Soneil 48v 3.5 Amp Constant Current World Smart Charger on Facebook share Soneil 48v 3.5 Amp Constant Current World Smart Charger on Twitter share Soneil 48v 3.5 Amp Constant Current World Smart Charger on Pinterest

Soneil 48v 3.5 Amp Constant Current World Smart Charger

Free Ground Shipping to Lower 48 States *
$172.95 In Stock ( 26 )
Part No. 4808SRF

Protection provided: Reverse Polarity, Short Circuit, Over-Voltage, Over Current and AC Surge. Soft Start and Stop; Starts and stops gradually. No sudden in-rush of current. This protects both the batteries and any other circuits connected to the charger.

Soneil’s Battery Charger transforms the 115/230 VAC into 48 VDC at about 100,000 Hz (3333 times faster than conventional charger), which requires a much smaller transformer and this results in a unit of smaller size, low weight and improved efficiency. The 4808SRF uses sophisticated electronic circuitry with microchips. All present day computers use switch-mode technology.

Stage 1: Deep Discharge Charging Pulse Mode
The Charger starts charging at 0.5V and give pulse current up to 5V. This has effect of removing loose sulphation formed during deep discharge state of the battery.

Stage 2: Constant Current Mode (CC)
The charger changes to constant current 3.0A. When the battery voltage reaches up to 57.6, the charging stage changes from (CC) Constant Current to CV (Constant Voltage) mode.

Stage 3: Constant Voltage Mode (CV)
The charger holds the battery at 57.2V and the current slowly reduces. When the current reaches 0.5 C (C= Battery Capacity), it is called the Switching Point. The Switching Point is one of the great features of this battery charger that it can adjust the current automatically according to the battery capacity. Other chargers without microprocessors are not capable of adjusting the current automatically.

Stage 4: Standby Voltage Mode
The charger maintains the battery voltage at 55.2V and current slowly reduces to zero. Charger can be left connected indefinitely without harming the battery.

Recharging:
If the battery voltage drops below to 55.2V, the charger changes from any mode to Constant Current mode and restart charging. The charging cycle will go through Stage 2 to Stage 4.

Read More

Overview

Protection provided: Reverse Polarity, Short Circuit, Over-Voltage, Over Current and AC Surge. Soft Start and Stop; Starts and stops gradually. No sudden in-rush of current. This protects both the batteries and any other circuits connected to the charger.

Soneil’s Battery Charger transforms the 115/230 VAC into 48 VDC at about 100,000 Hz (3333 times faster than conventional charger), which requires a much smaller transformer and this results in a unit of smaller size, low weight and improved efficiency. The 4808SRF uses sophisticated electronic circuitry with microchips. All present day computers use switch-mode technology.

Stage 1: Deep Discharge Charging Pulse Mode
The Charger starts charging at 0.5V and give pulse current up to 5V. This has effect of removing loose sulphation formed during deep discharge state of the battery.

Stage 2: Constant Current Mode (CC)
The charger changes to constant current 3.0A. When the battery voltage reaches up to 57.6, the charging stage changes from (CC) Constant Current to CV (Constant Voltage) mode.

Stage 3: Constant Voltage Mode (CV)
The charger holds the battery at 57.2V and the current slowly reduces. When the current reaches 0.5 C (C= Battery Capacity), it is called the Switching Point. The Switching Point is one of the great features of this battery charger that it can adjust the current automatically according to the battery capacity. Other chargers without microprocessors are not capable of adjusting the current automatically.

Stage 4: Standby Voltage Mode
The charger maintains the battery voltage at 55.2V and current slowly reduces to zero. Charger can be left connected indefinitely without harming the battery.

Recharging:
If the battery voltage drops below to 55.2V, the charger changes from any mode to Constant Current mode and restart charging. The charging cycle will go through Stage 2 to Stage 4.

The output connector may be removed for custom applications with out affecting the warranty.

Features

  • Totally Automatic Switch-Mode Battery Charger
  • Suitable for Gel, Sealed (AGM) and Wet Lead Acid Batteries
  • Suitable for use anywhere in the World.
  • Dual Voltage-Switch selectable 115/230 VAC 47 to 62 HZ
  • Automatic Cut Off and then True Float. Can be left connected indefinitely without harming the battery.
  • Two color LED to indicate charge status
  • CE Listed & Meets European EMC Directive
  • Mean Time between failures 30,000 hours
  • Zero Current Drain when AC power is off
  • Very low start voltage 0.5
  • Fan cooled circuitry
  • Optimal 3 Step Charging
  • Built-in Mode Indicators
  • Demand Sensing
  • Reverse Polarity Protection
  • Over Voltage Protected
  • Short Circuit Protection
  • Overload Protection
  • Line Regulation
  • Thermal Protection
  • 1 year Warranty

This Product Replaces These Other Products

Works In

Vehicles that 4808SRF works in

Technical Specifications

  • Dimensions (LxWxH): 6.9 x 3.7 x 1.9 in
  • Weight: 2.5
  • Shipping Weight (lb.): 4.0
  • Max Current, During Bulk Charge: 3.5 A
  • Absorption Voltage: 57.6 V
  • AC Input Volts: 115/230 V
  • AC Input Volts Freq.: 47/63 Hz
  • AC Input Volts Range: 90–264 V
  • Float Voltage: 55.2 V
  • Output Banks: 1
  • Regulatory Approval: CE Listed & Meets European EMC Directive
  • Manufacturer’s Part Number: Son4808SRF
