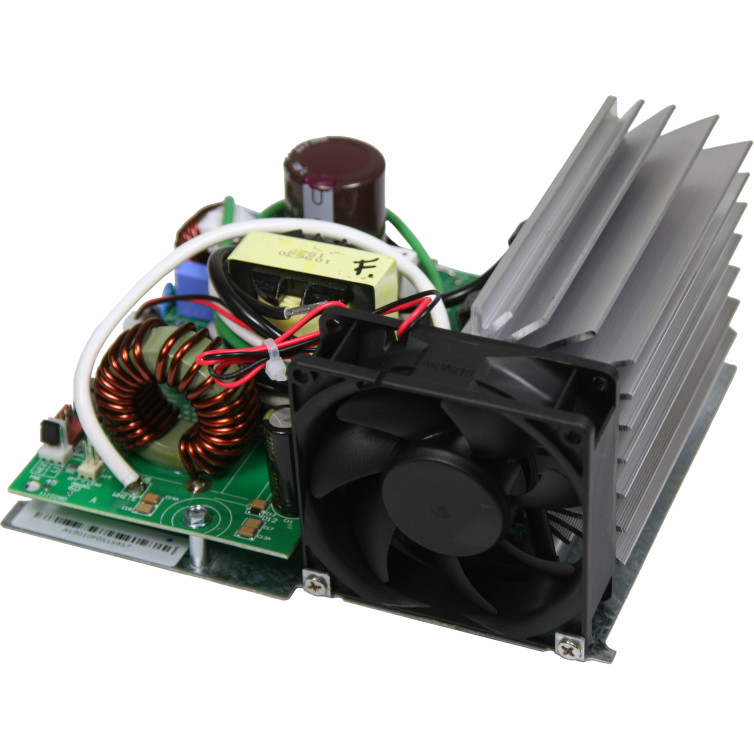

Progressive Dynamics PD4045 45 Amp Inteli-Power Replacement Converter
PD4045CSV
$149.95
Free Ground Shipping to Lower 48 States *
Quantity
OR Simple-Click Checkout
In Stock
Product InformationStore Part Number: PD4045CSV
Overview
Replaces: Inteli-Power PD4045 Converter Section
Progressive Dynamics Inteli-Power 4000 Series models can recharge the battery to 90% in approximately 3-6 hrs using their patented Charge Wizard Technology. The Progressive Dynamics PD4045CSV is a 12v 45 Amp replacement converter section for the PD4045 All-In-One Distribution Panel.
The PD4045CSV Charge Wizard Technology Features:
- BOOST Mode 14.4 Volts – Rapidly brings RV battery up to 90% of full charge.
- NORMAL Mode 13.6 Volts – Safely completes the charge.
- STORAGE Mode 13.2 Volts – Maintains charge with minimal gassing or water loss.
- EQUALIZATION Mode 14.4 Volts – Every 21 hours for a period of 15 minutes prevents battery stratification
& sulfation – the leading cause of battery failure.
Features
- 45 Amp Converter Section
- Slip In Replacement
- Easy To Install
- Charge Wizard Technology
Tech Specs
- Dimensions (LxWxH): 6.94 x 5.82 x 3.62 in
- Weight: 2.9 lb
- Shipping Weight: 4 lb
- Converter Specifications:
- Maximum DC Output: 45 Amps
- Maximum Continuous Input Power: 725 Watts
- No Load DC Output Voltage: 13.6 VDC ±.3 VDC
- Full Load Output Voltage: > 12.6 VDC
- Ripple and Noise Voltage: < 50 MV RMS
- Model: PD4045CSV
- Manufacturer: Progressive Dynamics
- Input Voltage Tolerance: 105 - 130 VAC
- Input Voltage Frequency: 50-60 HZ
- Peak Inrush Current: 32 Amps
- Input Current at Rated Power: ~8.3 Amps
- Efficiency (Typical): > 80%
- Cooling Fan: Auto-variable speed
- Charge Wizard: YES
- Warranty: 2 Year
- Returnable: 30 Days Unopened / Non-Returnable once mounted or wires spliced.
- Manufacturer Part #: PD4045CSV
- Made In: USA
