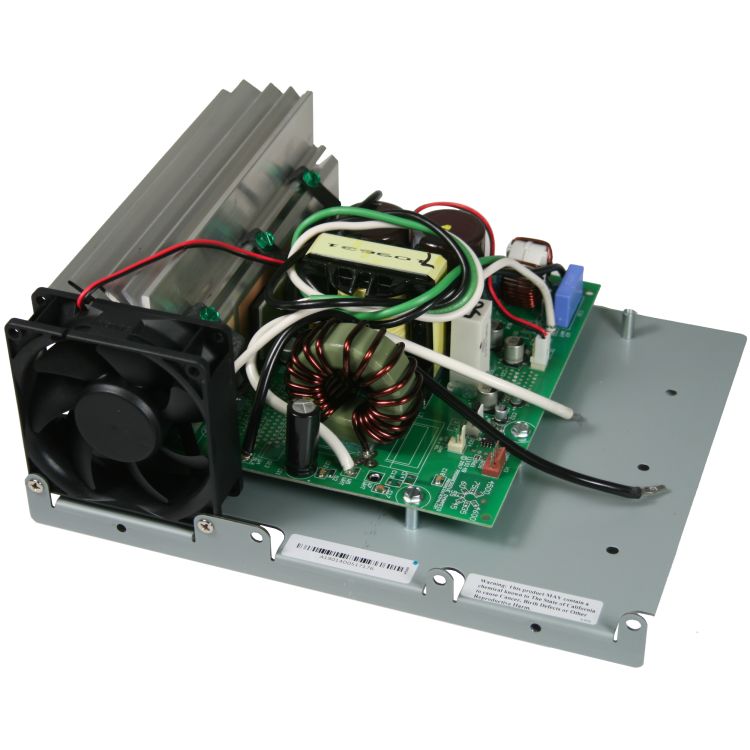

Progressive Dynamics PD4560 60 Amp Inteli-Power Replacement Converter

PD4560CSV
$209.95
Free Ground Shipping to Lower 48 States *
Quantity

OR Simple-Click Checkout
In Stock
Share this item with your friends

Product InformationStore Part Number: PD4560CSV

Overview

Replaces: Inteli-Power PD4560 Converter Section

Progressive Dynamics Inteli-Power 4500 Series models can recharge the battery to 90% in approximately 3-6 hrs using their patented Charge Wizard Technology. The Progressive Dynamics PD4560CSV is a 12v 60 Amp replacement converter section for the PD4560 All-In-One Distribution Panel.

The PD4560CSV Charge Wizard Technology Features:

  • BOOST Mode 14.4 Volts – Rapidly brings RV battery up to 90% of full charge.
  • NORMAL Mode 13.6 Volts – Safely completes the charge.
  • STORAGE Mode 13.2 Volts – Maintains charge with minimal gassing or water loss.
  • EQUALIZATION Mode 14.4 Volts – Every 21 hours for a period of 15 minutes prevents battery stratification
    & sulfation – the leading cause of battery failure.

Features

  • 60 Amp Converter Section
  • Slip In Replacement
  • Easy To Install
  • Charge Wizard Technology

Tech Specs

  • Dimensions (LxWxH): 9.69 x 7.75 x 3.94 in
  • Weight: 4.5 lb
  • Shipping Weight: 6 lb
  • Converter Specifications:
  • Maximum DC Output: 60 Amps
  • Maximum Continuous Input Power: 1000 Watts
  • No Load DC Output Voltage: 13.6 VDC ±.3 VDC
  • Full Load Output Voltage: > 12.6 VDC
  • Ripple and Noise Voltage: < 100 MV RMS
  • Model: PD4560CSV
  • Manufacturer: Progressive Dynamics
  • Input Voltage Tolerance: 105 - 130 VAC
  • Input Voltage Frequency: 50-60 HZ
  • Peak Inrush Current: 47 Amps
  • Input Current at Rated Power: ~11.4 Amps
  • Efficiency (Typical): > 80%
  • Cooling Fan: Auto-variable speed
  • Charge Wizard: YES
  • Warranty: 2 Year
  • Returnable: 30 Days Unopened / Non-Returnable once mounted or wires spliced.
  • Manufacturer Part #: PD4560CSV
  • Made In: USA
