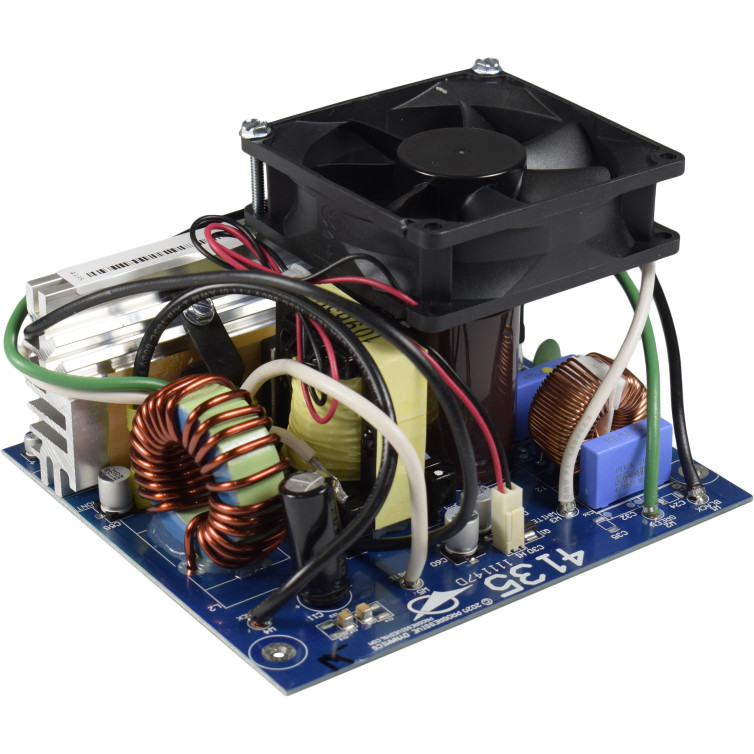

Progressive Dynamics PD4135 35 Amp Inteli-Power Replacement Converter
Progressive Dynamics PD4135 35 Amp Inteli-Power Replacement Converter
Progressive Dynamics PD4135 35 Amp Inteli-Power Replacement Converter
Share this item
share Progressive Dynamics PD4135 35 Amp Inteli-Power Replacement Converter on Facebook share Progressive Dynamics PD4135 35 Amp Inteli-Power Replacement Converter on Twitter share Progressive Dynamics PD4135 35 Amp Inteli-Power Replacement Converter on Pinterest

Progressive Dynamics PD4135 35 Amp Inteli-Power Replacement Converter

Free Ground Shipping to Lower 48 States *
$161.95 In Stock ( 4 )
Part No. PD4135CSV

The Progressive Dynamics PD4135CSV is the replacement converter section for the PD4135 series All-In-One AC/DC Distribution Panel. The PD4135CSV features Charge Wizard Technology that enables it to recharge the battery pack to 90% in approximately three to six hours.

The PD4135CSV comes with an output mode switch for charging lead-acid batteries and lithium batteries with a Battery Management System (BMS). In the default mode the switch is turned off allowing you to charge lead-acid flooded, AGM and gel cell batteries utilizing the Charge Wizard Technology. When the switch is turned on for lithium batteries the Charge Wizard Technology is turned off and the converter will output a constant nominal voltage of 14.6 VDC allowing the BMS to control the charge.

The Charge Wizard Technology Features:

  • BOOST Mode 14.4 Volts – Rapidly brings RV battery up to 90% of full charge.
  • NORMAL Mode 13.6 Volts – Safely completes the charge.
  • STORAGE Mode 13.2 Volts – Maintains charge with minimal gassing or water loss.
  • EQUALIZATION Mode 14.4 Volts – Every 21 hours for a period of 15 minutes prevents battery stratification and sulfation – the leading cause of battery failure.
Read More

Overview

The Progressive Dynamics PD4135CSV is the replacement converter section for the PD4135 series All-In-One AC/DC Distribution Panel. The PD4135CSV features Charge Wizard Technology that enables it to recharge the battery pack to 90% in approximately three to six hours.

The PD4135CSV comes with an output mode switch for charging lead-acid batteries and lithium batteries with a Battery Management System (BMS). In the default mode the switch is turned off allowing you to charge lead-acid flooded, AGM and gel cell batteries utilizing the Charge Wizard Technology. When the switch is turned on for lithium batteries the Charge Wizard Technology is turned off and the converter will output a constant nominal voltage of 14.6 VDC allowing the BMS to control the charge.

The Charge Wizard Technology Features:

  • BOOST Mode 14.4 Volts – Rapidly brings RV battery up to 90% of full charge.
  • NORMAL Mode 13.6 Volts – Safely completes the charge.
  • STORAGE Mode 13.2 Volts – Maintains charge with minimal gassing or water loss.
  • EQUALIZATION Mode 14.4 Volts – Every 21 hours for a period of 15 minutes prevents battery stratification and sulfation – the leading cause of battery failure.

Features

  • 35-Amp Converter Section

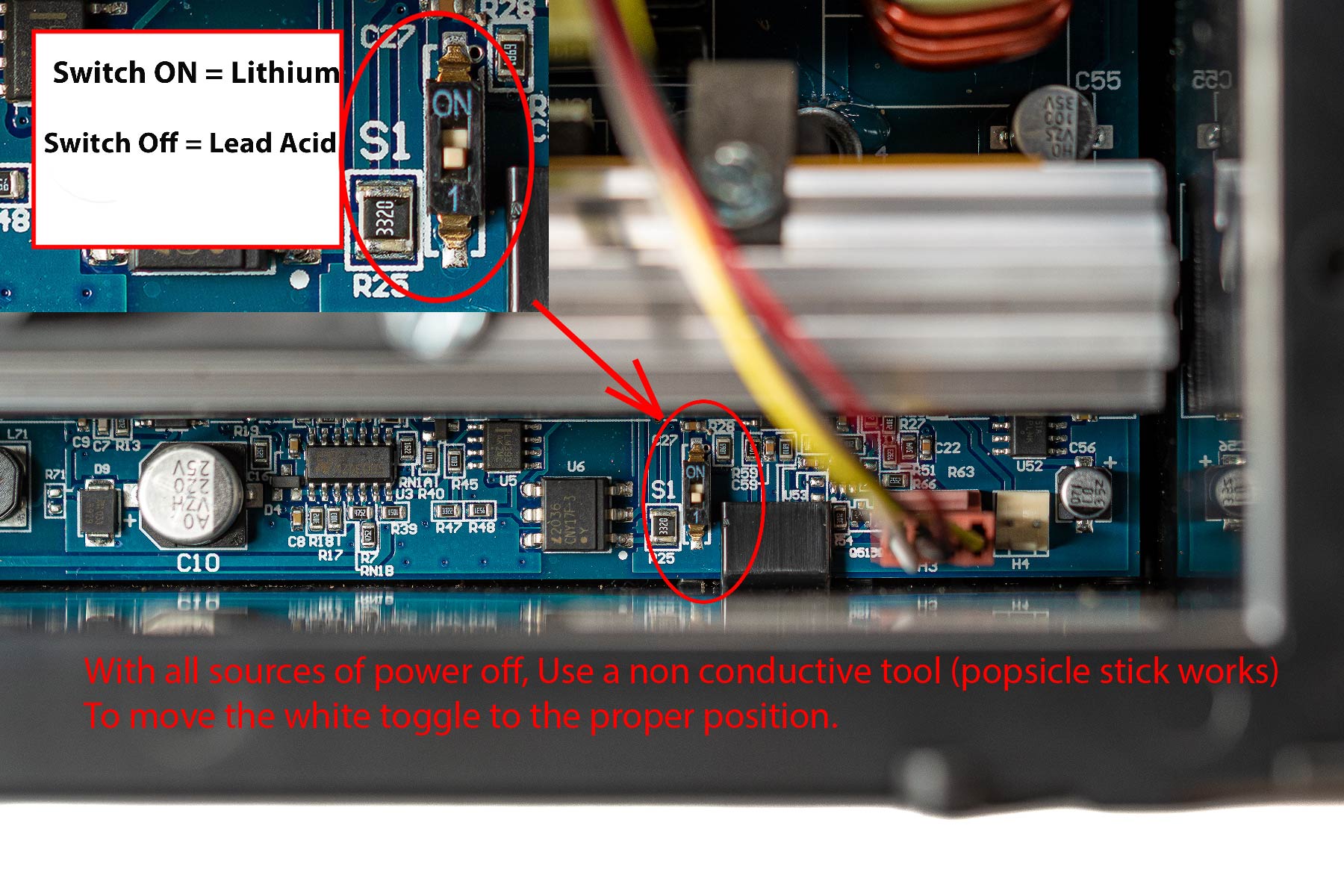

  • Output Mode Switch: Lead-Acid (Default) and Lithium Charge Mode.
  • Easy To Install
  • Charge Wizard Technology

This Product Replaces These Other Products

Progressive Dynamics PD4135W2BV & PD4135W2B Converter Section.

Works In

Vehicles that PD4135CSV works in

Technical Specifications

  • Dimensions (LxWxH): 5.5 x 5.13 x 3.47 in
  • Weight: 1.75 LB
  • Shipping Weight: 5 LB
  • Converter Specifications:
  • AC Input Voltage: 105-130 VAC
  • AC Input Current: 725 Watts
  • Input Voltage Frequency: 50-60 HZ
  • DC Output System Voltage: 12v
  • DC Output Voltage: 13.6-14.6 VDC
  • Maximum DC Output Current: 35 Amps
  • Cooling Fan: Auto-variable speed
  • Charge Wizard: YES
  • Warranty: 2 Year
  • Returnable: 30 Days Unopened / Non-Returnable once mounted or wires spliced.
  • UPC: 675566413528
  • Made in: USA
  • Manufacturer’s Part Number: PD4135CSV
