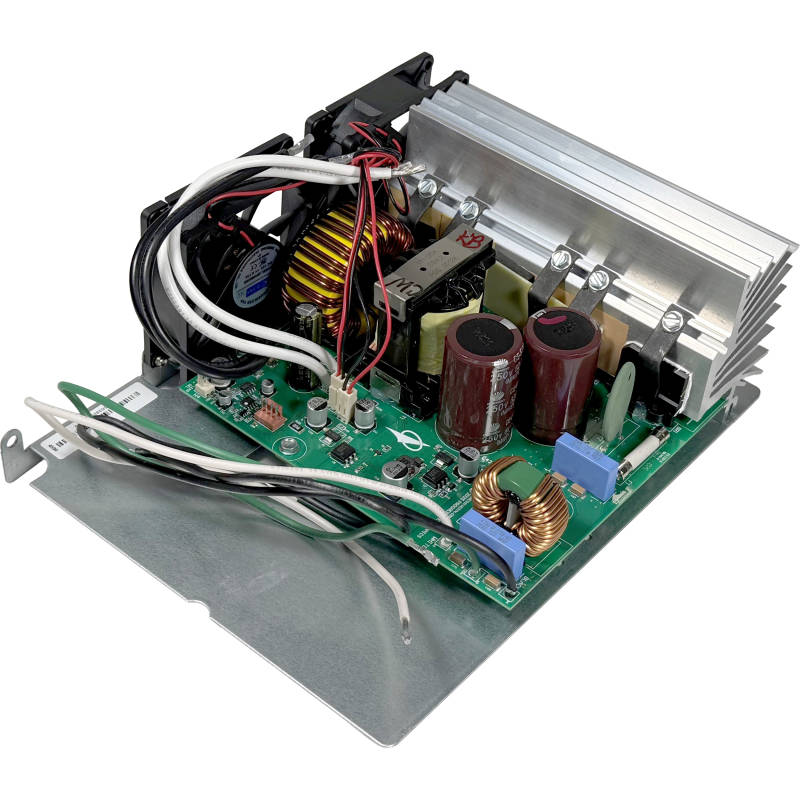

Progressive Dynamics Inteli-Power 4500 Series models can recharge the battery to 90% in approximately 3-6 hrs using their patented Charge Wizard Technology. The Progressive Dynamics PD4590CSV RV converter is a 12v 90 Amp replacement converter section for the PD4590 All-In-One Distribution Panel.
The PD4590CSV Charge Wizard Technology Features:
- BOOST Mode 14.4 Volts – Rapidly brings RV battery up to 90% of full charge.
- NORMAL Mode 13.6 Volts – Safely completes the charge.
- STORAGE Mode 13.2 Volts – Maintains charge with minimal gassing or water loss.
- EQUALIZATION Mode 14.4 Volts – Every 21 hours for a period of 15 minutes prevents battery stratification
& sulfation – the leading cause of battery failure.
Features
- 90 Amp Converter Section
- Lead Acid Charging Profile
- Slip In Replacement
- Easy To Install
- Charge Wizard Technology
Technical Specifications
- Dimensions (LxWxH): 9.69 x 7.75 x 3.94 in
- Weight: 4.9 lb
- Shipping Weight: 8 lb
- Converter Specifications:
- Maximum DC Output: 90 Amps
- Maximum Continuous Input Power: 1550 Watts
- No Load DC Output Voltage: 13.6 VDC ±.3 VDC
- Full Load Output Voltage: > 12.6 VDC
- Input Voltage Tolerance: 105 - 130 VAC
- Input Voltage Frequency: 50-60 HZ
- Cooling Fan: Auto-variable speed
- Charge Wizard: YES
- Warranty: 2 Year
- Returnable: 30 Days Unopened / Non-Returnable once mounted or wires spliced.
- UPC: 675566459014
- Made in: USA
- Manufacturer: Progressive Dynamics
- Manufacturer’s Part Number: PD4590CSV
- Model: PD4590CSV
