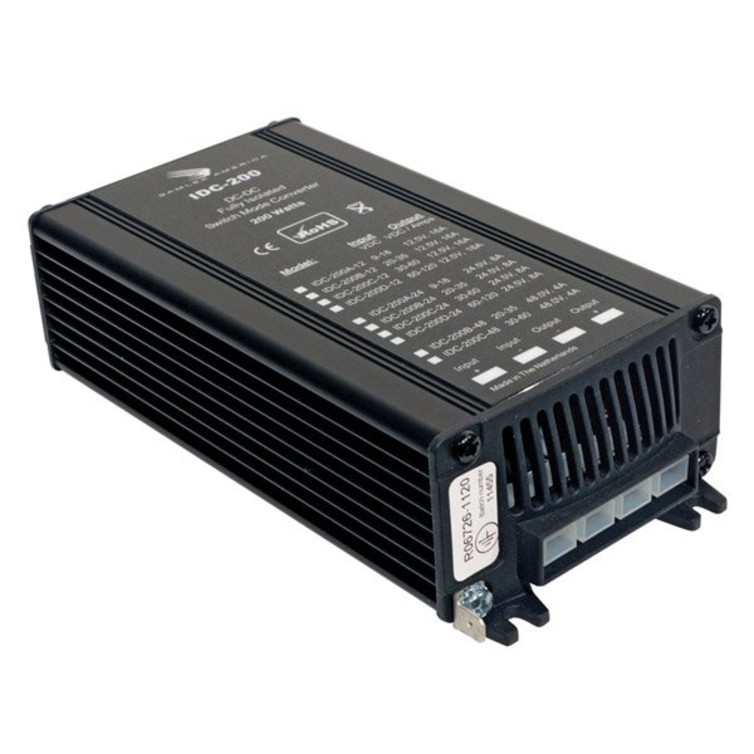

Samlex 30v-60v Input 12v Output 16 Amp DC to DC Converter
Samlex 30v-60v Input 12v Output 16 Amp DC to DC Converter
Samlex 30v-60v Input 12v Output 16 Amp DC to DC Converter
Share this item
share Samlex 30v-60v Input 12v Output 16 Amp DC to DC Converter on Facebook share Samlex 30v-60v Input 12v Output 16 Amp DC to DC Converter on Twitter share Samlex 30v-60v Input 12v Output 16 Amp DC to DC Converter on Pinterest

Samlex 30v-60v Input 12v Output 16 Amp DC to DC Converter

Free Priority Mail Shipping to USA *
Was: $189.00
Sale Price: $156.95 In Stock ( 2 )
Part No. IDC-200C-12

IDC-200C-12 is the perfect high efficiency 200 Watt isolated DC-DC converter suitable for applications requiring galvanic isolation between the input and the output. The IDC-200C-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 30-60 Volts and rated output current of 16 Amps (at 60 Volts input). Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, over voltage and reverse polarity connection. The unit comes with push-on flat blade, quick disconnect connectors. IDC-200C-12 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI) and EN50082-1 (for EMC).

Typical Applications include, Electric Vehicles, Heavy Equipment, Trucks, Buses, Marine Vehicles, CB radios, 12 Volt lighting systems, and AM/FM sound systems.

Read More

icon Important Notice

Allows you to properly run 12V DC Accessories off of high voltage DC systems. Allow an extra week delivery time.

Overview

IDC-200C-12 is the perfect high efficiency 200 Watt isolated DC-DC converter suitable for applications requiring galvanic isolation between the input and the output. The IDC-200C-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 30-60 Volts and rated output current of 16 Amps (at 60 Volts input). Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, over voltage and reverse polarity connection. The unit comes with push-on flat blade, quick disconnect connectors. IDC-200C-12 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI) and EN50082-1 (for EMC).

Typical Applications include, Electric Vehicles, Heavy Equipment, Trucks, Buses, Marine Vehicles, CB radios, 12 Volt lighting systems, and AM/FM sound systems.

Features

  • Fully automatic. No user adjustable settings
  • Switch mode technology
  • Small, compact unit
  • Easy to install
  • ROHS compliant
  • CE listed
  • Overload / short circuit protection on the output side
  • Over voltage protection on the output side
  • Over voltage / transients protection on the input side

This Product Replaces These Other Products

Works In

Vehicles that IDC-200C-12 works in

Technical Specifications

  • Dimensions (LxWxH): 6.9 x 3.5 x 1.9 in
  • Weight: 1.4
  • Shipping Weight (lb.): 2
  • DC Output Amps: 16A
  • DC Output Voltage: 12.5V
  • Typical Efficiency: 85%
  • Power Requirements: 30-60 VDC
  • Maximum Power Output, Continuous: 16A
  • Ripple and Noise: < 50 mV RMS
  • Enclosure: Metal, Black
  • Regulatory Approval: CE, ROHS
  • UPC: 622988067228
  • Manufacturer’s Part Number: IDC-200C-12
