Important NoticeOverview

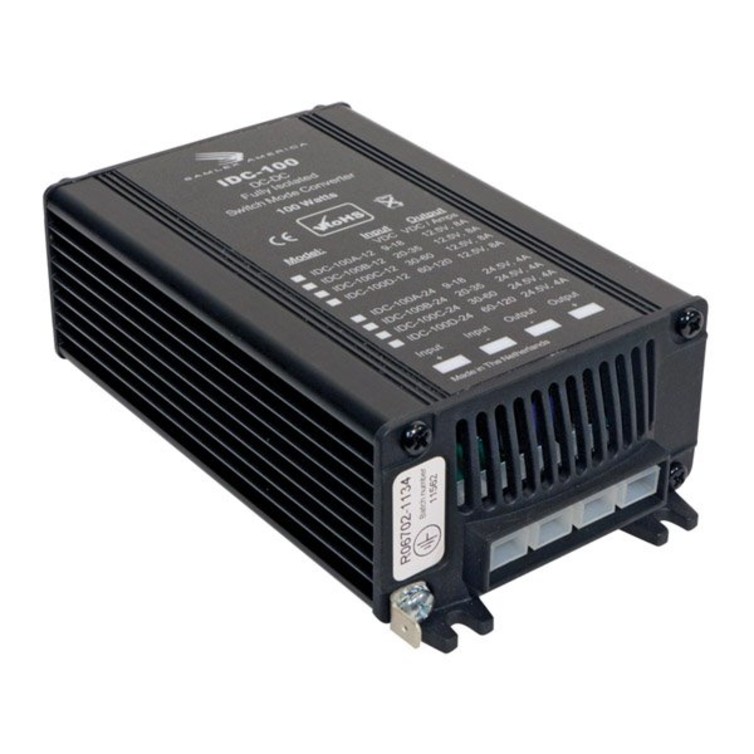

IDC-100A-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 9-18 Volts and rated output current of 8 Amps (at 18 Volts input). Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection.
The unit comes with ¼” push-on flat blade “quick disconnect” connectors. IDC-100A-12 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/CE.
* Flat Rate shipping is for the lower 48 states only.Features
- Fully Isolated
- Short Circuit Protected
- Current Limited
- Easy to install
- European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/CE
- 2 Year Warranty
Technical Specifications
- Dimensions (LxWxH): 5.9 x 3.5 x 1.9 in
- Weight: 1.2 lb
- Shipping Weight: 2 lb
- Input Voltage Range: 9-18 VDC
- Output Voltage: 12.5 VDC
- Output Current: 8 A
- Input To Output Isolation: Yes. > 400 V RMS
- Output Ripple & Noice: <50 mV RMS
- Peak Efficiency: 85%
- Cooling: By temperature controlled fan
- Operating Temperature: 20°C to +30°C, De-rate linearly to zero at 70°C; -4°F to 86°F, De-rate linearly to zero at 158°F
- Humidity (Non-condensing): 95% Max
- Protections: Overload / short circuit on the output side, over voltage on the output side, over voltage / transients on the input side, reverse polarity on the input side, over heating
- External Input Side Fuse (Inline with "input +" terminal): 32 V, 15 A
- External Output Side Fuse (Inline with "output +" terminal): 32 V, 10 A
- Input Wire (Up to 6ft): 8 AWG
- Output Wire(Up to 10ft): 10 AWG
- Safety & EMC: Emissions: EN50081-1 / EN61000-6-3; Immunity: EN50082-1 / EN61000-6-1; Automotive: 95 / 54 / EC
- Input / Output Connections: Quick connect male 6.3 mm / ¼” flat blade
- Warranty: 2 Year
- UPC: 622988067013
- Made in: Netherlands
- Manufacturer: Samlex
- Manufacturer’s Part Number: IDC-100A-12
- Model: IDC-100A-12
