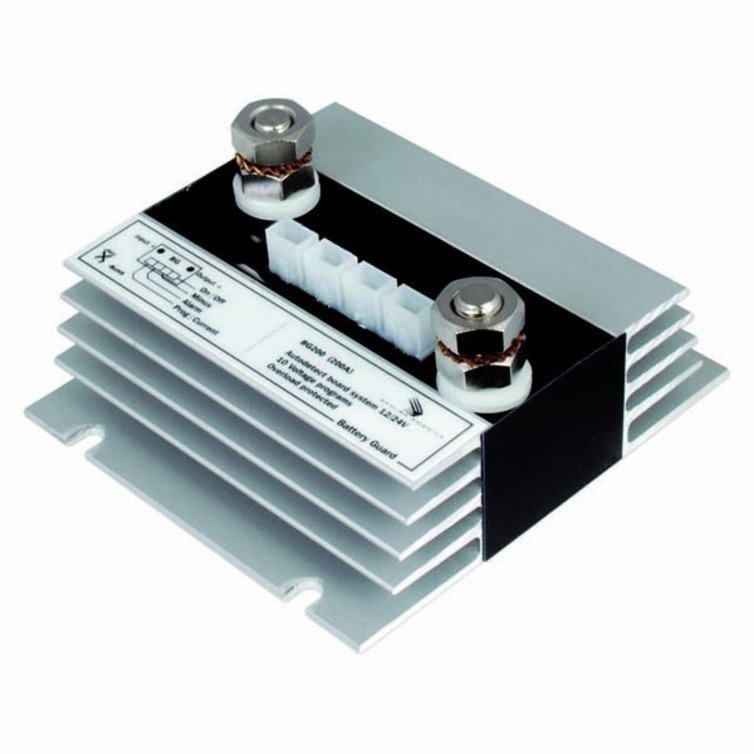

Samlex BG-200: 12v / 24v 200 Amp Battery Voltage Protector

PART NUMBER: BG-200
zoom photos Samlex BG-200: 12v / 24v 200 Amp Battery Voltage Protector
Samlex BG-200: 12v / 24v 200 Amp Battery Voltage Protector
Samlex BG-200: 12v / 24v 200 Amp Battery Voltage Protector
Samlex BG-200: 12v / 24v 200 Amp Battery Voltage Protector
Share this item
share Samlex BG-200: 12v / 24v 200 Amp Battery Voltage Protector on Facebook share Samlex BG-200: 12v / 24v 200 Amp Battery Voltage Protector on Twitter share Samlex BG-200: 12v / 24v 200 Amp Battery Voltage Protector on Pinterest

Samlex BG-200: 12v / 24v 200 Amp Battery Voltage Protector

PART NUMBER: BG-200
Leave a review →
Free Ground Shipping to Lower 48 States *
-34% $25295 Out of Stock
Normal Price: $381.30
Link copied to clipboard
  • Batteries last longer
  • Prevents damage to connected components
  • Part Number: BG-200

Overview

The universal programmable Samlex 12v / 24v 200-amp Battery Guard (BG) prevents the excessive discharge of the battery (which would damage the battery) and protects electronic appliances against overvoltage. The BG200 battery guard has an “Automatic Board System Detection”; the BG automatically detects the battery voltage (12 or 24V). The BG200 battery guard is capable of carrying 200A continuous load and 210A transient load. There is a choice out of 10 on/off threshold voltage programs, for both 12V and 24V battery systems, which can be easily programmed.

* Flat Rate shipping is for the lower 48 states only.

Prevents excessive discharge of batteries. Ideal for:
Marine
Automotive
Recreational

Features

  • Can be set to connect / disconnect at several different voltages with jumpers
  • Batteries last longer
  • Prevents damage to connected components
  • Protects against excessive voltage caused by faulty alternators or chargers
  • Prevents excessive discharge of batteries

This Product Replaces These Other Products

Works In

Vehicles that BG-200 works in

Technical Specifications

  • Dimensions (LxWxH): 4.33 x 4.72 x 2.36 in
  • Weight: 1.55 lb
  • Maximum Continuous Load Current (Shutdown Current: 200A (210A)
  • Peak Current: 480A
  • Operating Voltage: Autodetect 12 or 24VDC; 8-19 VDC (12VDC); 20-35 VDC (24VDC); 10 programmable voltage thresholds
  • Current Consumption: -4mA
  • Current Consumption in Off Position or Under-Or Over-Voltage Position: -2mA
  • Voltage Drop: 0.1125@180A
  • Overvoltage Shutdown: 12V MODE - >16 V; 12V MODE - >16 V
  • Shutdown at Overload: After 5 sec (after 1 minute start up)
  • Connection: On/Off switch; Alarm buzzer or relay; Current Watch current sensor
  • Current Output Tolerance: +/-20%
  • Voltage Tolerance: ~2%
  • Casework: Anodized aluminium black
  • Enclosure Type: IP 66 (Watertight)
  • Safety & EMC: EMISSION - EN50081-1 / EN61000-6-3; IMMUNITY - EN50082-2 / EN61000-6-1; AUTOMOTIVE - 95/95CE
  • Warranty: 2 Year
  • Shipping Weight: 3 lb
  • UPC: 622988086519
  • Made in: The Netherlands
  • Manufacturer: Samlex
  • Manufacturer’s Part Number: BG-200
  • Model: BG-200
