Samlex 24v 600 Watt Pure Sine Wave Power Inverter PST-600-24

PART NUMBER: PST-600-24
zoom photos Samlex 24v 600 Watt Pure Sine Wave Power Inverter PST-600-24
Samlex 24v 600 Watt Pure Sine Wave Power Inverter PST-600-24 Samlex 24v 600 Watt Pure Sine Wave Power Inverter PST-600-24 Samlex 24v 600 Watt Pure Sine Wave Power Inverter PST-600-24
Samlex 24v 600 Watt Pure Sine Wave Power Inverter PST-600-24 Samlex 24v 600 Watt Pure Sine Wave Power Inverter PST-600-24 Samlex 24v 600 Watt Pure Sine Wave Power Inverter PST-600-24
Samlex 24v 600 Watt Pure Sine Wave Power Inverter PST-600-24 Samlex 24v 600 Watt Pure Sine Wave Power Inverter PST-600-24 Samlex 24v 600 Watt Pure Sine Wave Power Inverter PST-600-24
Share this item
share Samlex 24v 600 Watt Pure Sine Wave Power Inverter PST-600-24 on Facebook share Samlex 24v 600 Watt Pure Sine Wave Power Inverter PST-600-24 on Twitter share Samlex 24v 600 Watt Pure Sine Wave Power Inverter PST-600-24 on Pinterest

Samlex 24v 600 Watt Pure Sine Wave Power Inverter PST-600-24

PART NUMBER: PST-600-24
Free Ground Shipping to Lower 48 States *
-20% $30670 Only 2 Left in Stock
Normal Price: $383.40
Link copied to clipboard
Visa
mastercard
discover
american express
PayPal

OR

  • 600-Watt Continuous-Rating
  • 1000-Watt Surge-Rating
  • Peak Efficiency Rating: > 85%!
  • Dual GFCI-protected AC outlet
  • No-load power draw: < 450 mA!
  • Part Number: PST-600-24

Overview

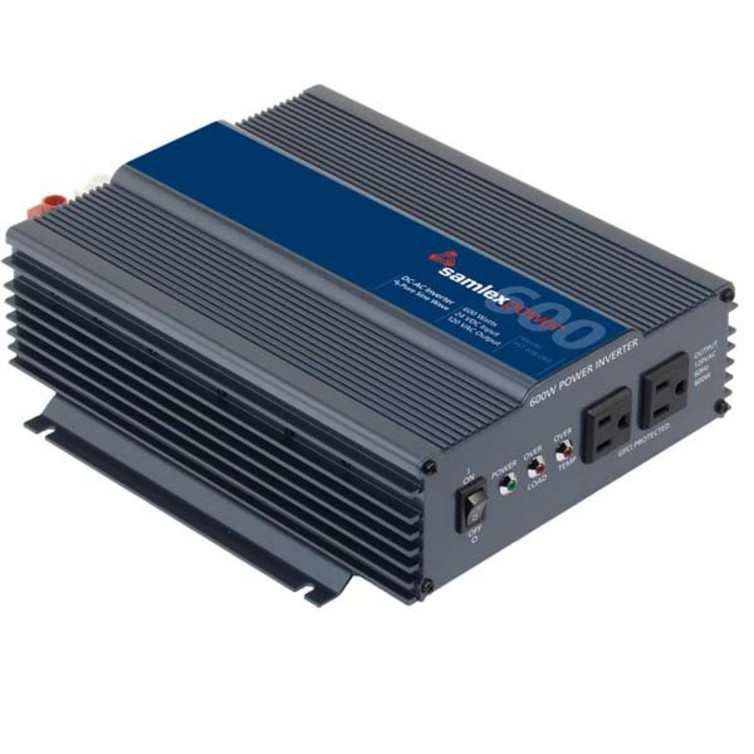

The Samlex America PST-600-24 is a 24v 600-watt pure sine wave power inverter. This inverter takes an input of 24 VDC and inverts it to produce 120 VAC. This allows you to run household devices off 24v battery power.

The Samlex PST-600-24 has a high 1000-watt surge rating and a continuous output rating of 600 watts and features a Dual GFCI-protected outlet.

Samlex PST-600-24 is a high-efficiency Pure Sine Wave DC to AC power inverter that can be used in many different applications. The clean power delivered by Samlex PST Series Inverters is of the same quality and efficiency as the power provided by your utility company, which is not the case with the cheaper and more popular big box stores that carry modified sine inverters.

The Samlex PST-600-24 has a wide DC operating range of 21 to 33 volts. This makes it compatible with high-voltage DC charging, such as solar and equalization charging.  Because of the heavy-duty chassis, the PST-600-24 can cool itself via convection, which allows for less fan runtime, leading to longer fan life and less no-load draw.

PLEASE NOTE: Many electrical devices require a good deal more Watts to start or energize than are required to run once started. For instance, an electric device may require only 250 watts to run but may need 800 watts to start. Please check with the manufacturer of your equipment to obtain the minimum watts needed to start the equipment or device.

We highly recommend the use of Pure Sine Wave Inverters to power computers and related peripheral devices, i.e., printers, external drives, and scanners. If you are in doubt, check with the manufacturer of your equipment.

Other devices that benefit when Pure Sine Wave power is used are variable speed control motors using solid state circuitry, Audio Amplifiers, Digital Clocks and Radios, Medical Equipment, Microwaves, etc.


Features

  • 600-Watt Continuous-Rating
  • 1000-Watt Surge-Rating
  • Peak Efficiency Rating: > 85%!
  • Dual GFCI-protected AC outlet
  • No-load power draw: < 450 mA!
  • Low battery voltage alarm
  • Optional remote control (sold separately): Model RC-15A
  • Universal Protection Circuit: low voltage, over-voltage, over temperature, over load, and short circuit.
  • 3-Year Limited Warranty

This Product Replaces These Other Products

Works In

Vehicles that PST-600-24 works in

Technical Specifications

  • Dimensions (LxWxH): 10.87 x 9.37 x 3.23 in
  • Weight: 5.9 lb
  • Output Voltage: 120 VAC +/- 3%
  • Maximum Output Current: 5.1A
  • Output Frequency: 60 Hz ±1%
  • Type of Output Waveform: Pure Sine Wave
  • Maximum Power Output Continuous: 600 W
  • Maximum Power Output Surge (For < 8 ms): 1000 Watts
  • Peak Efficiency: 85%
  • AC Output Connections: NEMA5-20R GFCI Duplex Receptacle
  • Nominal DC Input Voltage: 24v
  • DC Input Voltage Range: 21.4 - 33.0 VDC
  • Maximum Input Current: 40 A
  • DC Input Current at No Load: < 450 mA
  • Low DC Input Voltage Alarm: 21.4V ± 0.2V
  • Low DC Input Voltage Shutdown: 20V ± 0.2V
  • High DC Input Voltage Shutdown: 33V
  • Overload Shutdown: At overload of 110% to 115% for 2 to 2.5 sec
  • Wired Remote (Optional-Sold-Separately): RC-15A
  • Forced Air Cooling: Temperature-controlled fan
  • Operating Temperature Range: -4˚F to 104˚F
  • Warranty: 3-Year
  • Shipping Weight: 9 lb
  • UPC: 622988072161
  • Manufacturer: Samlex
  • Manufacturer’s Part Number: PST-600-24
  • Model: PST-600-24
