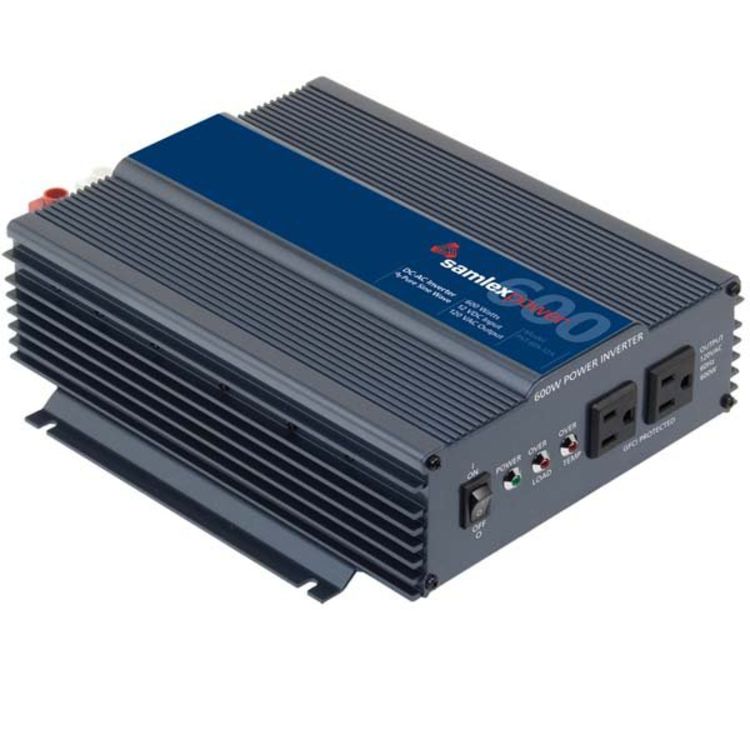

Samlex 12v 600 Watt Pure Sine Wave Power Inverter PST-600-12
Sale Price: $199.95
OR Simple-Click Checkout
Product InformationStore Part Number: PST-600-12
Overview
The Samlex America PST-600-12 Converts 12 VDC to 120 VAC.
Samlex PST-600-12 is a high efficency Pure Sine Wave DC to AC power inverters that can be used in many different applications. The clean power delivered by Samlex's PST Series Inverters is of the same quality and efficiency as the power provided by your utility company, which is not the case with the cheaper and more popular big box stores that carry modified sine inverters.
The Samlex PST-600-12 is a 12 volt PST series inverters that has a wide DC operating range of 10.0 volts to 16.5 volts. This make the PST-600-12 compatible with high voltage dc charging-such as solar charging and equalization charging. Because of the heavy duty chassis, the PST-600-12 is able to cool itself via convection, which allows for less fan run time-leading to longer fan life and less no load draw.
Features
- Samlex Pure Sine Wave Advantage
- Motors speed more accurate, run cooler and last longer
- TV monitors will be crystal clear (as good as using city power)
- Medical equipment often requires pure sine wave for proper operation
- No Load Draw 500 mA
- Output Voltage 120 VAC +/- 3%
- AC Output Frequency 60 Hz
- Low Voltage Alarm 10.7 V
- Low Voltage Shut Down 10 V
- Two AC Receptacle 3-Prong Grounded
Comments
We highly recommend the use of Pure Sine Wave Inverters to power Computers and related peripheral devices; i.e. printers, optical drives, laser copiers, and if in doubt check with the manufacturer of your equipment.
PLEASE NOTE: Many electrical devices require a good deal more Watts to start or energize than is required run once started. For instance an electric motor may require only 350 watts to run but may need 1000 watts to start. Please check with the manufacturer of your equipment to obtain minimum watts for starting operation of the equipment or device.
Tech Specs
- Dimensions (LxWxH): 10.87 x 9.47 x 3.23 in
- Weight: 5.59 lb
- Shipping Weight: 9 lb
- Output Voltage: 120VAC ±3%
- Maximum Output Current: 5.1A
- Output Frequency: 60Hz ±1%
- Type Of Output Waveform: Pure Sine Wave
- Total Harmonic Distortion of Output Waveform: <3%
- Continuous Output Power (At Power Factor = 1): 600 Watts
- Surge Output Power (At Power Factor = 1; <2 sec): 1000 Watts
- Peak Efficiency (At Full Load): 85%
- AC Output Connections: NEMA5-20R GFCI Duplex Outlets
- Nominal DC Input Voltage: 12V
- DC Input Voltage Range: 10.7 - 16.5 VDC
- Maximum Input Current: 80A
- DC Input Current at No Load: < 600 mA
- Model: PST-600-12
- Manufacturer: Samlex
- DC Input Connections: Tubular Type Screw Down Terminals
- Display-Led: Power, Overload, Over Temperature
- Low DC Input Voltage Alarm: 10.7V
- Low DC Input Voltage Shutdown: 10V
- High DC Input Voltage Shutdown: 16.5V
- Short Circuit Shutdown: Yes
- Overload Shutdown: Yes
- Ground Fault Shutdown: Yes
- Over Temperature Shutdown: Yes
- Reverse Polarity on DC Input Side: Yes
- Wired Remote Control (Optional): RC-15A (sold separately)
- Cooling: Forced Air Temperature Controlled Fan
- Safety: Intertek - ETL Listed. Conforms to ANSI/UL Standard 458.
- EMI / EMC: FCC Part 15(B), Class B
- Operating Temperature Range: 0°C-40°C
- Warranty: 2-Year
- Manufacturer Part #: PST-600-12
