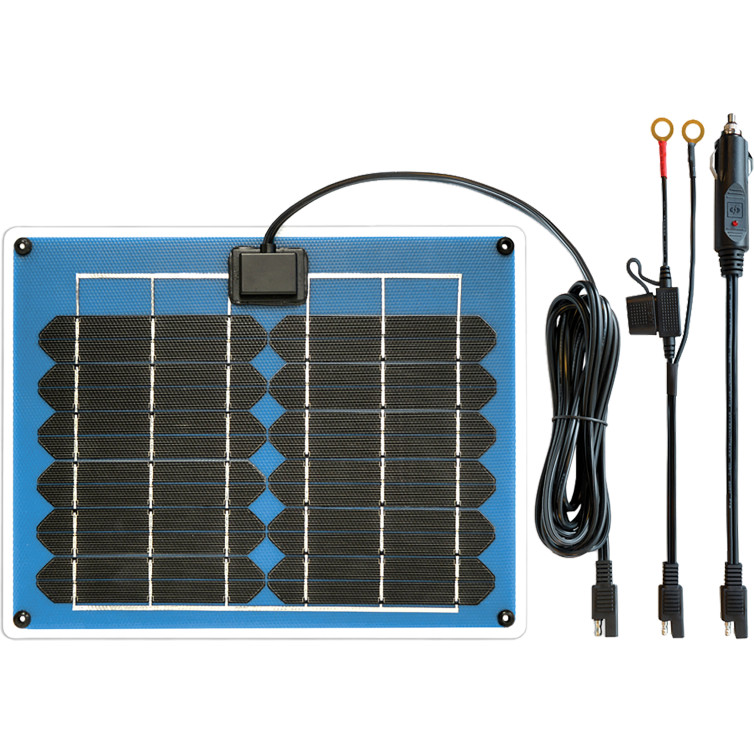

The Samlex Solar SunChargers SC-10 is a portable solar panel designed for float charging of 12V nominal rechargeable Lead Acid batteries. Typical application is to be used to maintain batteries used in cars, boats, RV’s, motorcycles, All Terrain Vehicles (ATV) and Powered Water Crafts (PWC).

Features

Averages 3.16 to 4.74 Amps per day (dependent on sunlight conditions)
Maximum efficiency
Prevents back flow of current from the battery to the panel
No need for additional Charge Controller
Semi-flexible panel construction

Rugged, weather-proof design
10ft cable
1ft cable with 12V power plug
1ft cable with ring terminals for battery

Tech Specs

Dimensions (LxWxH): 14.11 x 11.22 x 0.52 in
Weight: 1.2 lb
Shipping Weight: 3 lb
Type of Cells: Monocrystalline
No. of Cells: 24
Cell Size: 156.0 x 14.8 mm
Nominal Rated Power: 10W ±3%
Open Circuit Voltage Voc: 15.3 VDC
Maximum Power Voltage Vmp: 12.7 VDC
Short Circuit Voltage Isc: 0.85A
Maximum Power Current Imp: 0.79A
Model: SC-10
Manufacturer: Samlex

Cell Conversion Efficiency: 18.43%
Module Conversion Efficiency: 9.74%
Maximum System Voltage: 600VDC
Voltage Temperature Coefficient: -0.29% / °C
Current Temperature Coefficient: +0.05% / °C
Power Temperature Coefficient: -0.39% / °C
Blocking Diode: 30V, 1A, Vf = 0.55V
Connecting Cable: 10 ft, AWG #18, 105oC, 300V / 2-pin SAE Connector (Bare bullet is Negative)
Operating Temperature: -40°C to +85°C / -40°F to +185°F
Warranty: 2 Year Limited Warranty
Manufacturer Part #: SC-10
Made In: China
