Name: Samlex Solar 12v 5 Watt SunCharger Battery Maintainer
Brand: Samlex
SKU: SC-05
Price: 77.95 USD
Availability: InStock
Rating: 4 (1 reviews)

Overview

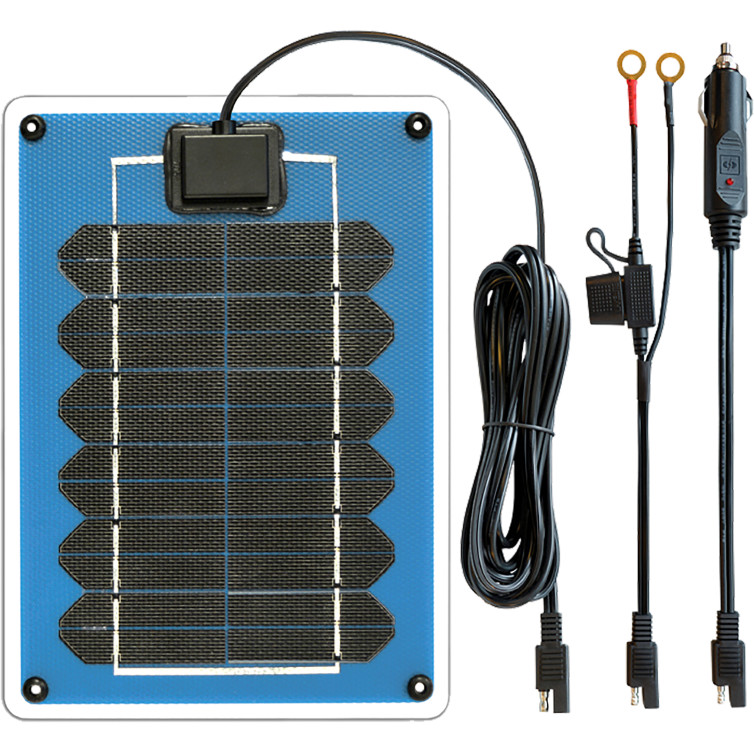

The Samlex Solar SunChargers SC-05 is a portable solar panel designed for float charging of 12V nominal rechargeable Lead Acid batteries. Typical application is to be used to maintain batteries used in cars, boats, RV’s, motorcycles, All Terrain Vehicles (ATV) and Powered Water Crafts (PWC).

Features

Averages 1.56 to 2.34 Amps per day (dependent on sunlight conditions)
Maximum efficiency
Prevents back flow of current from the battery to the panel
No need for additional Charge Controller
Semi-flexible panel construction
Rugged, weather-proof design
10ft cable
1ft cable with 12V power plug
1ft cable with ring terminals for battery

This Product Replaces These Other Products

Works In

Vehicles that SC-05 works in

Technical Specifications

Dimensions (LxWxH): 8.03 x 11.22 x 0.52 in
Weight: 0.8 lb
Shipping Weight: 3 lb
Type of Cells: Monocrystalline
No. of Cells: 24
Cell Size: 78.0 x 14.8 mm
Nominal Rated Power: 5W ±3%
Open Circuit Voltage Voc: 15.3 VDC
Maximum Power Voltage Vmp: 12.7 VDC
Short Circuit Voltage Isc: 0.42A
Maximum Power Current Imp: 0.39A
Cell Conversion Efficiency: 18.43%
Module Conversion Efficiency: 8.60%

Maximum System Voltage: 600VDC
Voltage Temperature Coefficient: -0.29% / °C
Current Temperature Coefficient: +0.05% / °C
Power Temperature Coefficient: -0.39% / °C
Blocking Diode: 30V, 1A, Vf = 0.55V
Connecting Cable: 10 ft, AWG #18, 105oC, 300V / 2-pin SAE Connector (Bare bullet is Negative)
Operating Temperature: -40°C to +85°C / -40°F to +185°F
Warranty: 2 Year Limited Warranty
UPC: 622988170317
Made in: China
Manufacturer: Samlex
Manufacturer’s Part Number: SC-05
Model: SC-05

Videos

Reviews

4.00 Average

5 Stars 0

4 Stars 1

3 Stars 0

2 Stars 0

1 Stars 0

Rated 4.00/5 Stars from 1 customer reviews.

Write a review ›

Do you own the SC-05? Please, tell us what you think about it. It helps us provide you with better products. Please note that it may take up to 72 hours for your review to appear.

★★★★☆

Beware! Reversed Polarity SAE connections

Charger seems to work well. Beware that if you already have SAE connectors on your batteries, this Samlex unit has the polarity reversed from standard. Typically, the battery ground is exposed and +12V shrouded on the battery pigtail, it is opposite on this charging unit. So beware!

Is this review helpful?

Written by Scott on Nov 05, 2019. — (11 of 13 customers found this review helpful)
