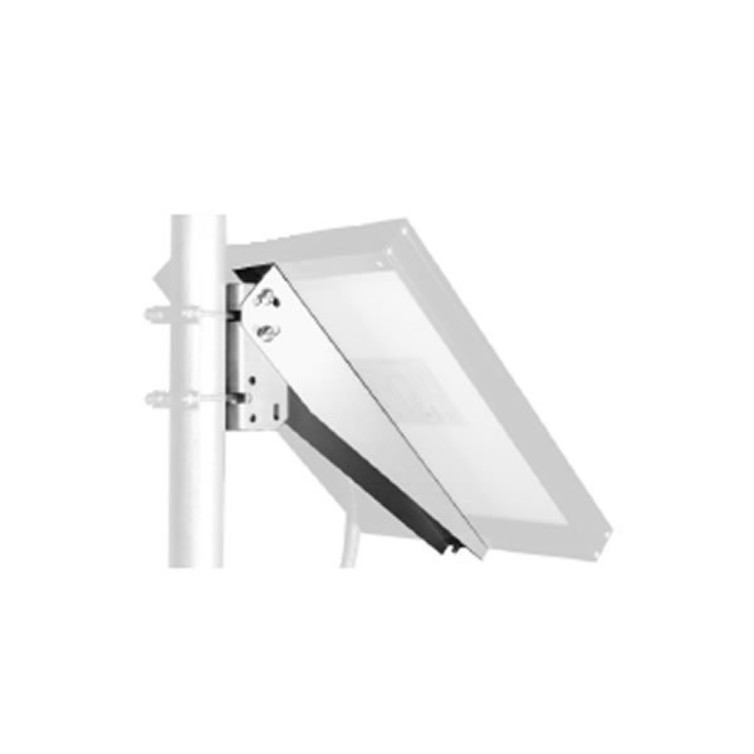

The SLD Tech SLB-0112 pole/wall mounting bracket is designed for use with SLD TECH ST Series panels 5 to 65 watt solar panels. The mounting bracket accepts a horizontal (roof), vertical (wall) or pole mounting. Kit ships with some hardware but does not contain lag screws for flat mounting or U-bolts for pole mounting.
Mount is constructed of heavy aluminum to withstand high wind gusts. Up to 90mph wind speeds! Durably designed for safe and secure mounting to poles, fences, walls or any flat surface.
Features
- Side of Pole/Wall Mount
- Specifically designed to work with Solarland SLP series panels
- Can be adapted for use with other panels
- Mounts 1 Panel
- Snow Loading up to 1.1kN/m2
- Tilt Arm and Fixed Bracket Material 5052Al
Technical Specifications
- Dimensions Fixed Bracket (LxWxH): 6.3 x 2.72 x 3.00
- Dimensions Tilt Arm(LxWxH): 21.62 x 3.23 x 2.99
- Setting Angle: 0°-90°
- Weight: 2 lb
- Warranty: 5 Years
- Shipping Weight: 3 lb
- Made in: Asia
- Manufacturer: Solarland / SLD Tech
- Manufacturer’s Part Number: SLB-0112
- Model: SLB-0112
