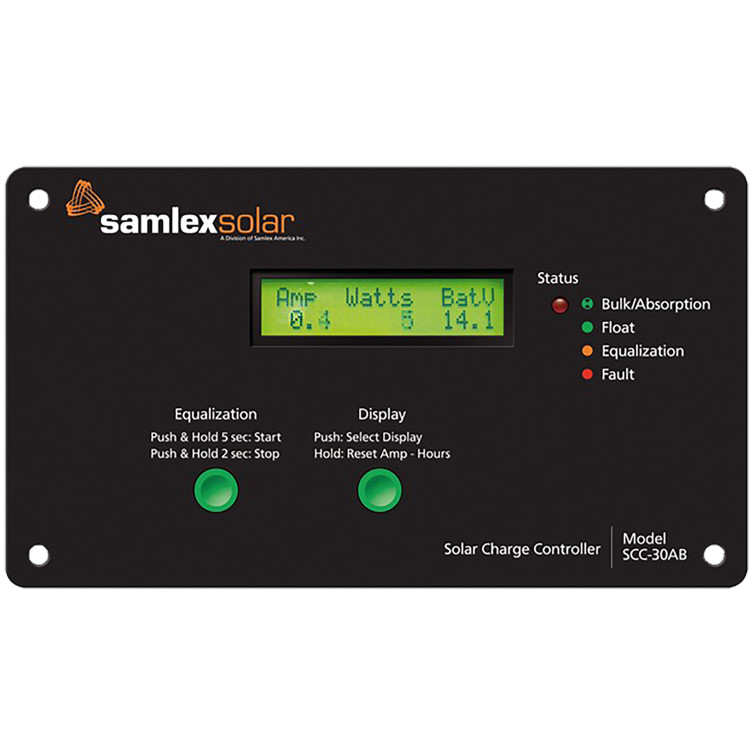

Samlex America 12v 24v 30 Amp Flush Mount Solar Charge Controller

PART NUMBER: SCC-30AB
zoom photos Samlex America 12v 24v 30 Amp Flush Mount Solar Charge Controller
Samlex America 12v 24v 30 Amp Flush Mount Solar Charge Controller
Samlex America 12v 24v 30 Amp Flush Mount Solar Charge Controller
Samlex America 12v 24v 30 Amp Flush Mount Solar Charge Controller
Share this item
share Samlex America 12v 24v 30 Amp Flush Mount Solar Charge Controller on Facebook share Samlex America 12v 24v 30 Amp Flush Mount Solar Charge Controller on Twitter share Samlex America 12v 24v 30 Amp Flush Mount Solar Charge Controller on Pinterest

Samlex America 12v 24v 30 Amp Flush Mount Solar Charge Controller

PART NUMBER: SCC-30AB
★★★★☆ (1) Leave a review →
This item qualifies for
$7.50 Flat Rate Shipping *
-14% $11495 Only 1 Left in Stock
Normal Price: $132.99
Link copied to clipboard
Visa
mastercard
discover
american express
PayPal

OR

  • Part Number: SCC-30AB

Overview

The SCC-30AB is a Series Type of PWM (Pulse Width Modulation)Solar Charge Controller. It is based on an advanced design using a microcontroller for digital accuracy and fully automatic operation. It can be used for 12V or 24V systems for solar charging . The PWM battery charging has been optimized for longer battery life. The unit is designed for user-friendly operation.

Safe to use on Lead Acid Flooded/AGM/Gel Cell and Ni-Cd batteries!

Features

  • Advanced microcontroller based design
  • Dual voltage capability - can be used with 12 V / 24 V systems
  • 30 Amps continuous charging capacity, enables use of up to 360 Watts for 12 volt panels or 720 Watts of 24 volt panels
  • Series Mode PWM (Pulse Width Modulation) charging design for low loss higher efficiency charging and longer battery life
  • 4 Stages of charging for 100% return of capacity and long battery life - Bulk, Absorption, Float, and Equalization Stages
  • Choice of 8 sets of Absorption / Float / Equalization voltage settings to enable complete and safe charging of a wide range of Lead Acid / Ni-Cd Batteries
  • Convenient 2 X 16 character LCD Display with backlight for display of operating information and data. Additional LED indication for displaying the charging stages
  • Optional remote Battery Temperature Sensor (BTS) Model DC-BTS-A-C for temperature compensation to ensure improved charging of batteries that experience wider temperature variations during the year
  • MOSFET based reverse current blocking for night-time battery discharge prevention. This allows much lower losses as compared to Diode based blocking
  • Specially designed for RVs, boats and trucks – allows convenient and aesthetic flush mounting on walls / panels
  • Industry leading 5 year Warranty

This Product Replaces These Other Products

Works In

Vehicles that SCC-30AB works in

Technical Specifications

  • Dimensions (LxWxH): 7 1⁄2 x 4 1⁄4 x 1 1⁄4 in
  • Weight: 1.35 lb
  • Max Current, During Bulk Charge: 30 A
  • Nominal Solar Voltage: 12/24 V
  • Max Open Circuit Voltage: 50 V
  • Charge Voltage: varies
  • Typical Efficiency: Self Draw 50 mA
  • Charge Control: PWM
  • Threshold: 11.4 LVD
  • Display: LCD and LED
  • Operating Temp Range: -10° C to +45° C
  • Warranty: 5 Year
  • Shipping Weight: 2 lb
  • UPC: 622988088001
  • Made in: Taiwan
  • Manufacturer: Samlex
  • Manufacturer’s Part Number: SCC-30AB

Videos

Reviews

4.00 Average
5 Stars 0
4 Stars 1
3 Stars 0
2 Stars 0
1 Stars 0
Rated 4.00/5 Stars from 1 customer reviews.

Do you own the SCC-30AB? Please, tell us what you think about it. It helps us provide you with better products. Please note that it may take up to 72 hours for your review to appear.

★★★★
My 2nd Samlex 30amp Solar Controller

A remote panel plugin would be a nice addition to product line.

Easy install and set up. Works as advertised. I like the backlit panel with just a button push.

Cons:

I wish the battery charge level was shown by a graph or something similar. This controller shows charge level with a flashing light. I have to count the flashes of the light (up to 5 flashes) and then remember from the owners manual how many flashes relates to what charge level. Ya, a real pain in the butt.

Is this review helpful?
Written by on Oct 20, 2016. Ownership: Use regularly. — (12 of 16 customers found this review helpful)
