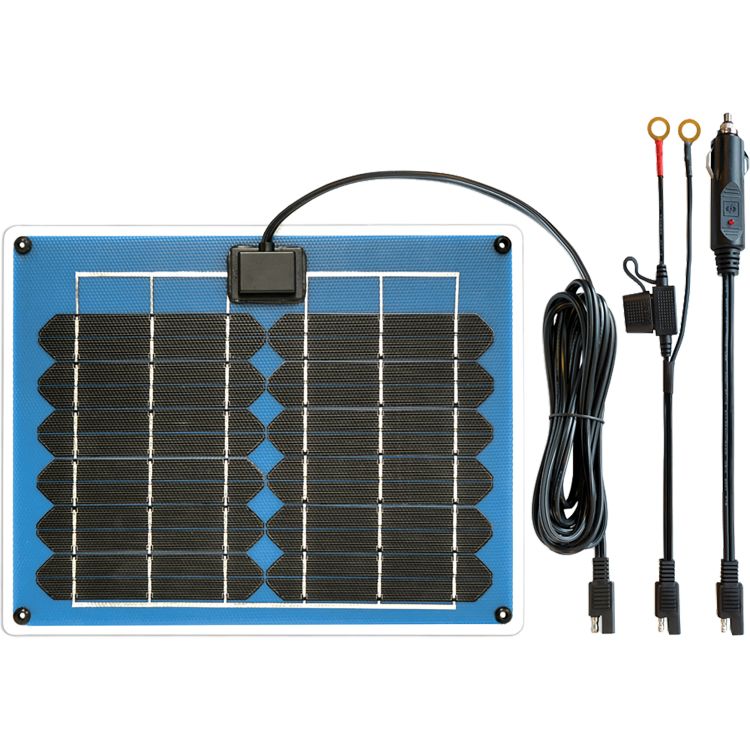

Samlex Solar 12v 10 Watt SunCharger Battery Maintainer

SC-10
Was: $152.80
Sale Price: $122.95
Free Ground Shipping to Lower 48 States *
Quantity

OR Simple-Click Checkout
In Stock
Share this item with your friends

Product InformationStore Part Number: SC-10

Overview

The Samlex Solar SunChargers SC-10 is a portable solar panel designed for float charging of 12V nominal rechargeable Lead Acid batteries. Typical application is to be used to maintain batteries used in cars, boats, RV’s, motorcycles, All Terrain Vehicles (ATV) and Powered Water Crafts (PWC).

Features

  • Averages 3.16 to 4.74 Amps per day (dependent on sunlight conditions)
  • Maximum efficiency
  • Prevents back flow of current from the battery to the panel
  • No need for additional Charge Controller
  • Semi-flexible panel construction
  • Rugged, weather-proof design
  • 10ft cable
  • 1ft cable with 12V power plug
  • 1ft cable with ring terminals for battery

Tech Specs

  • Dimensions (LxWxH): 14.11 x 11.22 x 0.52 in
  • Weight: 1.2 lb
  • Shipping Weight: 3 lb
  • Type of Cells: Monocrystalline
  • No. of Cells: 24
  • Cell Size: 156.0 x 14.8 mm
  • Nominal Rated Power: 10W ±3%
  • Open Circuit Voltage Voc: 15.3 VDC
  • Maximum Power Voltage Vmp: 12.7 VDC
  • Short Circuit Voltage Isc: 0.85A
  • Maximum Power Current Imp: 0.79A
  • Model: SC-10
  • Manufacturer: Samlex
  • Cell Conversion Efficiency: 18.43%
  • Module Conversion Efficiency: 9.74%
  • Maximum System Voltage: 600VDC
  • Voltage Temperature Coefficient: -0.29% / °C
  • Current Temperature Coefficient: +0.05% / °C
  • Power Temperature Coefficient: -0.39% / °C
  • Blocking Diode: 30V, 1A, Vf = 0.55V
  • Connecting Cable: 10 ft, AWG #18, 105oC, 300V / 2-pin SAE Connector (Bare bullet is Negative)
  • Operating Temperature: -40°C to +85°C / -40°F to +185°F
  • Warranty: 2 Year Limited Warranty
  • Manufacturer Part #: SC-10
  • Made In: China
