Calculator | Determine Run Time for Specific Load

This calculator is intended to help you figure out how long your lead-acid (Wet, AGM, Gel) battery will last under a specified load. In order to use this calculator you will need two separate AH ratings, given by the manufacturer, as well as the amperage, in direct current of your load. For an explanation of why a calculator is necessary to figure out the true run time of your battery see Puekert’s Law.

Capacity AH rating 1 C1 AH
Hour Rate AH rating is at R1 Hour Rate
Capacity AH rating 2 C2 AH
Hour Rate AH rating is at R2 Hour Rate

Battery Temperature  Check if Battery Temp is Over/Under 0-85 °F


Age of Battery

 Check if Battery is more than 6 months old.

Peukerts Constant

Amperage of Load Applied Amps

Capacity At Given Load   AH @   Hr Rate under a   Amp Load





Walkthrough

  This calculator is designed to tell you exactly how long your battery will last given a set amperage load that is put on it.  It requires 2 separate AH ratings at different hour ratings.  If you do not know, you will need to contact the manufacturer to find out.  Typically you will have a 100hr rate, a 20 hr rate and a 10 hr rate readily available from the manufacturer.
  If you cannot find out this information, then you can use our Modified Battery Run Time Calculator.
Photo Icon
Example

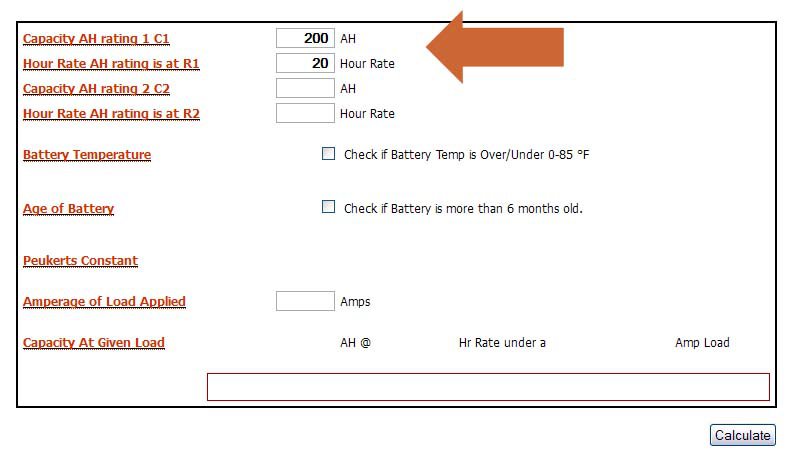

C1 and R1 - The first field of this calculator is for the first AH rating for the battery.  In our example, it is 200 AH.  This leads to the second field, which is the hour rate that the AH is given at.  In our example it is the 20 Hr rate.
Photo Icon
Example

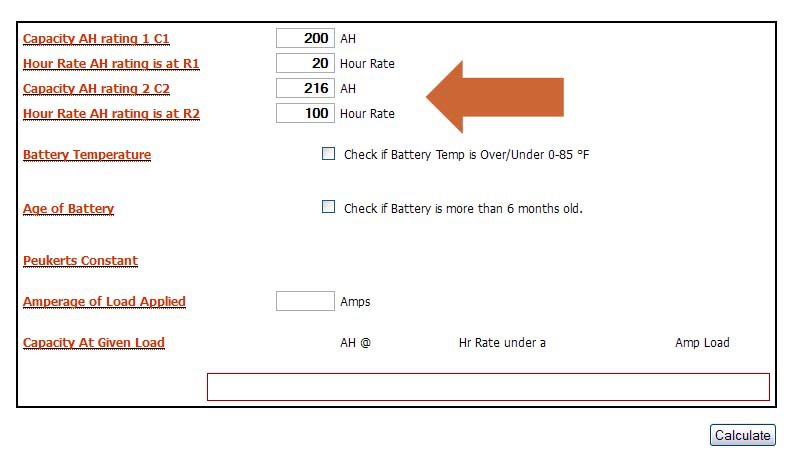

C2 and R2 - The third and fourth fields are for the second set of ratings, in this case 216AH at a 100 Hr rate.
Photo Icon
Example

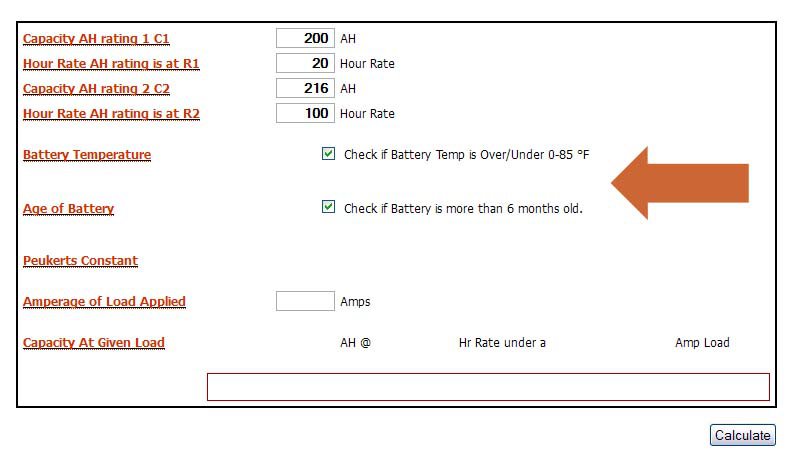

Battery Temperature and Age - The fifth field is to adjust for extreme environmental temperatures, in our example it is over 85 deg F. The sixth field accounts for age of the battery.
Photo Icon
Example

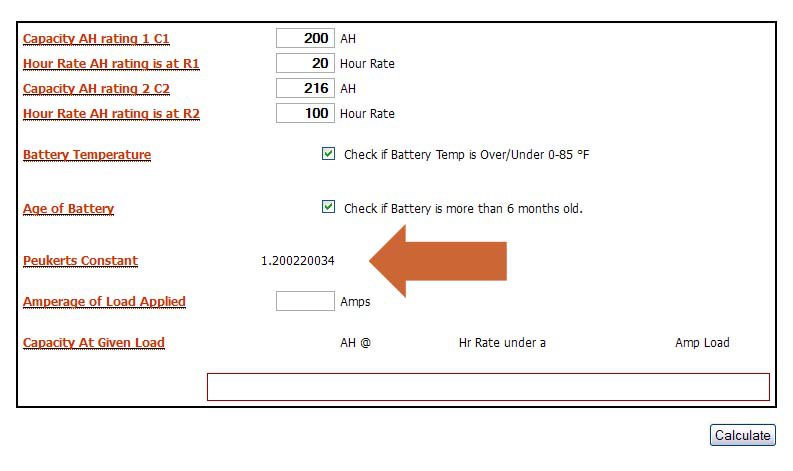

Peukert's Constant - The seventh field is Peukert’s constant, and is figured using the previously given information. If you want to see the formula yourself, see our Math behind the Magic article.
Photo Icon
Example

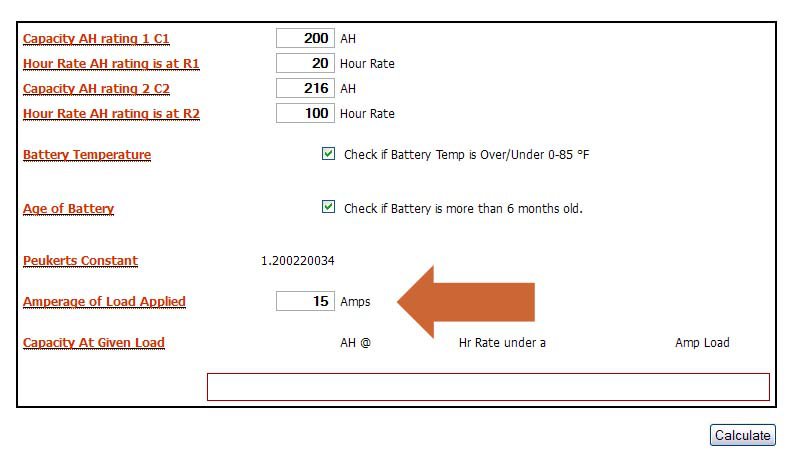

Amperage of Load Applied - The next field is where the amperage of the load you are placing on the battery is entered. This is figured in DC amperage, so if your load is being ran through an inverter; use our AC to DC amperage conversion calculator. For our example, we have calculated a total load of 15 amps.

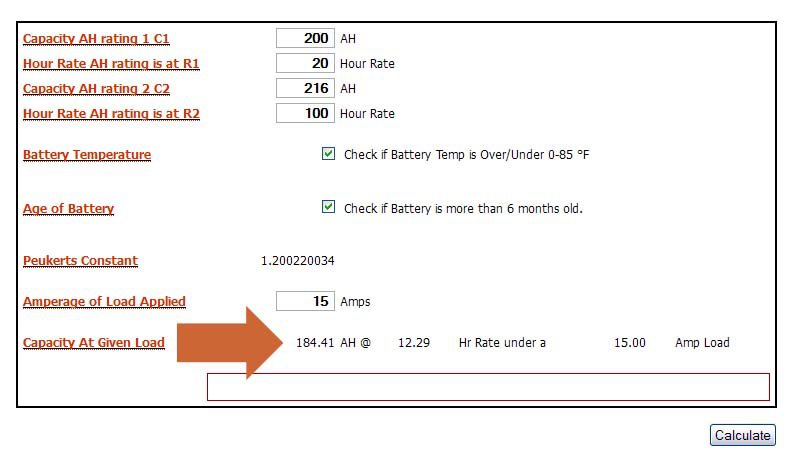

Example Capacity At Given Load - The nineth field tells you exactly what the adjusted capacity of this battery is at your specific load.
Photo Icon
Example
Runtime with 50% Safe Discharge Level - The last field tells you approximately how long your battery will last under the given load and circumstances. Under a 15 amp load, our 100 AH Battery should be discharged no more than 6 hours and 9 minutes.

Was this information helpful? Sign up to Get Updates and Offers.

Email address should be formatted user@domain.com
We respect your rights to privacy and will not share your email information with anyone ever.
13 people commented, Tech, Stacey, PCbored, Lawrence McCratty, and 9 others
This article is rated 4.2 out of 5
For Questions and Tech Support, please submit your question with our Support Page.

Should contain only letters, numbers, and (' - .)!

   1   2   3   4   5

Subscribe to comments with RSS.

  • Stacey I found this web site while trying to understand charge time and time in use (load) for eletric carts using 6 6v deep cycle batteries in series, 36v. the run time calcutator looks as though it would be for 1 battery. With regards to the manufactures ratings used in the calcultor and series batrteries how do we handle that?

    Reply  •  June 25, 2014 at 6:38 pm
    • BatteryStuff Tech Please email your full question with system specs to Tech@batterystuff.com

      Reply  •  June 27, 2014 at 8:54 am
  • PCbored A helpful hint: RC is the minutes to discharge at 25A draw, so if RC = 120 then 120 = 2 hours and 25A X 2 hours = 50 Ah. Therefore MOST batteries already have 2 different Ah ratings right there on the label. Example: I have a class 24 Marine RV battery, the label shows 20 hour rate = 65 and RC = 120, so in this case C1 = 65, R1 = 20, C2 = 50, R2 = 2. This calculator is extremely easy to use if you know how to interpret the given specifications.

    Reply  •  Ratted article 5  •  May 22, 2014 at 8:07 am
  • Lawrence McCratty i have a 250 watt 36 volt solar panel to charge my batteries. how many ah of 12 volt batteries do i need to operate my 1500 watt load for 15 hours if i am using a 12 to 220 volt DC to AC inverter.

    Reply  •  April 11, 2014 at 9:37 pm
  • Lawrence McCratty I have a 1500 watt load and a 12volt DC to AC 220 volt inverter which is 2000 watt. also, with a 250 watt 36 volt solar panel. how many ah of 12 volt batteries do i need to operate this my 2500 watt load for 15 hours

    Reply  •  April 11, 2014 at 9:30 pm
    • BatteryStuff Tech PCbored nailed it. Good answer.

      Reply  •  May 23, 2014 at 2:00 pm
    • PCbored Your first problem is your system is mismatched. A 36 volt source is designed to charge a 3 battery SEREIS bank. 3 batteries x 12V = 36V, max amp output is unchanged. Your inverter is designed to be run by a multiple battery PARALLEL system. 3 batteries x 15A = 45A or 3 batteries x 25A = 75A, 12V output is unchanged.

      Reply  •  Ratted article 5  •  May 22, 2014 at 7:48 am
  • Mar if we add tow batteries ( same AH ) in parallel we should double the C for each one and keep the same R ?

    Reply  •  Ratted article 5  •  December 31, 2012 at 6:13 pm
    • BatteryStuff Tech Capacity doubles, voltage stays the same. Therefore, AH, CCA, RC, and other capacity ratings will all double.

      Reply  •  January 2, 2013 at 9:56 am
  • Forrest Can you plug in AH and AH ratings for NiMh and NiCad batteries into these formulas and depend on the answers being correct.
    Also, you indicate in the text that you use a 15% ineficiency for inverter loss, but I only see about 10.4% used in the calculations in the example given. Am I missing something? This information is very informative. Thanks for the effort.

    Reply  •  Ratted article 5  •  November 2, 2012 at 11:51 am
    • BatteryStuff Tech The 15% loss is for the AC to DC Amperage Conversion Calculator. This Run Time Calculator assumes your DC amps have already been calculated accordingly. NiMH and NiCD batteries will not work with this calculators because they have different discharge variables. Peukert‘s Constant only refers to Lead Acid batteries.

      Reply  •  November 2, 2012 at 1:02 pm
  • Andrew this has been really helpful and not to hard to understand .
    Thanks very much.
    andrew Greaves

    Reply  •  Ratted article 1  •  October 1, 2012 at 4:54 pm
    • BatteryStuff Tech Glad you are finding it useful.

      Reply  •  October 2, 2012 at 8:05 am
