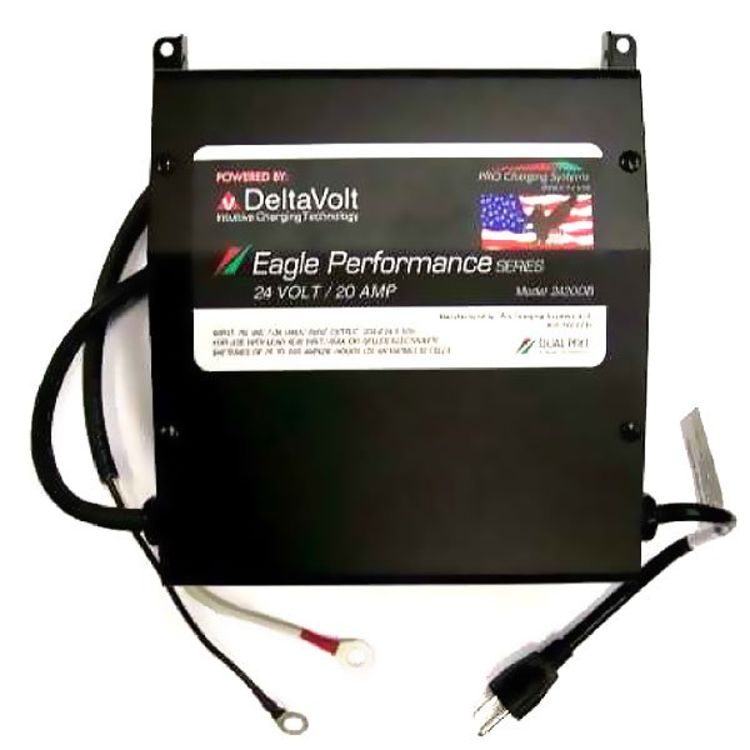

Eagle 24v 25 Amp Industrial Lift On-Board Charger i2425OBRMBIL

Eagle 24v 25 Amp Industrial Lift On-Board Charger i2425OBRMBIL
View Larger Image

Was: $521.99
Sale Price: $412.50 No Tax
Add to Cart
BatteryStuff Part #: i2425OBRMBIL
Flat Rate Shipping to USA

Ships Direct From Tennessee. Made in the USA!
Designed for Bil-Jax Industrial Units (45XA, 55XA, 2622T, 3522A, 3632T, 4527, 5533A).

Eagle 24v 25 Amp Industrial Lift On-Board Charger i2425OBRMBIL
Product Description

i2420OBRMBIL ModelThe Eagle Performance 24 volt 25 amp charger is meant for tough and rough applications. For any heavy duty 24 volt system, the Eagle is set up to charge efficiently and reliably every time. The i2425OBRMBIL has an integrated microprocessor to make sure that you never have to worry about overcharging your battery system.

The Dual Pro Eagle Series chargers 5 LEDs indicating battery charge level. When batteries are fully charged, the Eagle Charger turns off completely. Should the batteries discharge to a programmed voltage level, the Eagle Charger automatically reactivates the charge circuit and bring the batteries back to 100% charge. Eagle Chargers use a proprietary method of adjusting charge algorithm to compensate for temperature, thus improving battery charge quality and safety.

Ideal for use on Bil-Jax Industrial Units (45XA, 55XA, 2622T, 3522A, 3632T, 4527, 5533A). On-board model makes it simple to mount on other various applications.


  • For use with Lead Acid (Wet/AGM) batteries
  • Easily reconfigured for Gelled Electrolyte batteries
  • Battery type LED indicator
  • Designed for tough duty applications
  • Dependable, rugged construction
  • Exclusive temperature compensation
  • Water resistant
  • Fully automatic with float maintenance
  • Return to charge maintenance mode
  • Exclusive on board diagnostics
  • High visibility, easy to read charge indicators
  • Fan cooled
  • Optional Universal A/C input
  • Optimal 3 Step Charging
  • Built-in Mode Indicators
  • Spark Free Hook Up
  • Demand Sensing
  • Reverse Polarity Protection
  • Over Voltage Protected
  • Short Circuit Protection
  • Overload Protection
  • Withstand Voltage
  • Line Regulation
  • Load Regulation
  • Fan Control
  • Thermal Protection
  • 3 Year Warranty
* Flat Rate shipping is for the lower 48 states only.

Most Helpful Customer Reviews
Review Summary
  0 Average Rating
Ratings Small
Rated 0/5 Stars from 0 customer reviews.
Write Your Own Review

Do you own the i2425OBRMBIL? Please, tell us what you think about it. It helps us provide you with better products. Please note that it may take up to 72 hours for your review to appear.

Write a review

Secured by PayPal

Email Support

Technical Specifications
Length 9.425
Width 8
Height 6.5
Weight 20
Shipping Weight (lb.) 22
DC Output Amps 25 A
Absorption Voltage 29.04 V
AC Input Volts 115 VAC
AC Input Volts Freq. 60 kHz
Float Voltage 27 V
Equalization Voltage 31.92 V
Charge Reset: Battery Voltage Threshold 24 V
Working Temperature -30° to 50° C
Storage Temperature -40° to 85° C
200 V
Model: i2425OBRMBIL
Manufacturer: Pro Charging Systems
Manufacturer Part #: i2425OBRMBIL
Made In: USA
