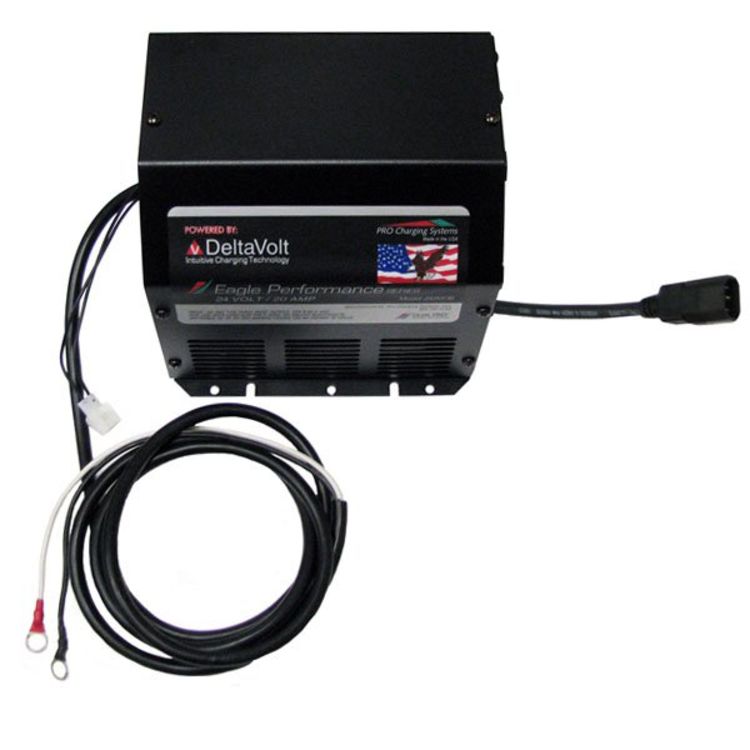

Eagle 24v 25 Amp Industrial Lift On-Board Charger i2425OBRMLIFTIEC
Sale Price: $438.95 - No Tax
$7.50 Flat Rate Shipping *
OR Simple-Click Checkout
Made in the USA!
Designed for Genie 2011 and later Scissor Lifts.
Product InformationStore Part Number: i2425OBRMLIFTIEC
The Eagle Performance 24 volt 25 amp charger is meant for tough and rough applications. For any heavy duty 24 volt system, the Eagle is set up to charge efficiently and reliably every time. The i2425OBRMLIFTIEC has an integrated microprocessor to make sure that you never have to worry about overcharging your battery system.
The Dual Pro Eagle Series chargers 5 LEDs indicating battery charge level (located on the right-hand side of the unit, see specification sheet). When batteries are fully charged, the Eagle Charger turns off completely. Should the batteries discharge to a programmed voltage level, the Eagle Charger automatically reactivates the charge circuit and bring the batteries back to 100% charge. Eagle Chargers use a proprietary method of adjusting charge algorithm to compensate for temperature, thus improving battery charge quality and safety.
Ideal for use on Genie 2011 and later Scissor Lifts. On-board model makes it simple to mount on various applications.
MADE IN THE UNITED STATES.
- For use with Lead Acid (Wet/AGM) batteries
- Easily reconfigured for Gelled Electrolyte batteries
- Battery type LED indicator
- Designed for tough duty applications
- Dependable, rugged construction
- Exclusive temperature compensation
- Water resistant
- Fully automatic with float maintenance
- Return to charge maintenance mode
- Exclusive on board diagnostics
- High visibility, easy to read charge indicators
- Fan cooled
- Optional Universal A/C input
- Optimal 3 Step Charging
- Built-in Mode Indicators
- Spark Free Hook Up
- Demand Sensing
- Reverse Polarity Protection
- Over Voltage Protected
- Short Circuit Protection
- Overload Protection
- Withstand Voltage
- Line Regulation
- Load Regulation
- Fan Control
- Thermal Protection
- 18 Month Warranty
* Flat Rate shipping is for the lower 48 states only.
- Dimensions (LxWxH): 8.5 x 7.1 x 7.75 in
- Weight: 20 lb
- Shipping Weight: 22 lb
- DC Output Amps: 25 A
- Absorption Voltage: 29.04 V
- AC Input Volts: 115 VAC
- Model: i2425OBRMLIFTIEC
- Manufacturer: Pro Charging Systems
- AC Input Volts Freq.: 60 kHz
- Float Voltage: 27 V
- Equalization Voltage: 31.92 V
- Charge Reset: Battery Voltage Threshold: 24 V
- Working Temperature: -30° to 50° C
- Storage Temperature: -40° to 85° C
- Manufacturer Part #: i2425OBRMLIFTIEC
- Made In: USA
