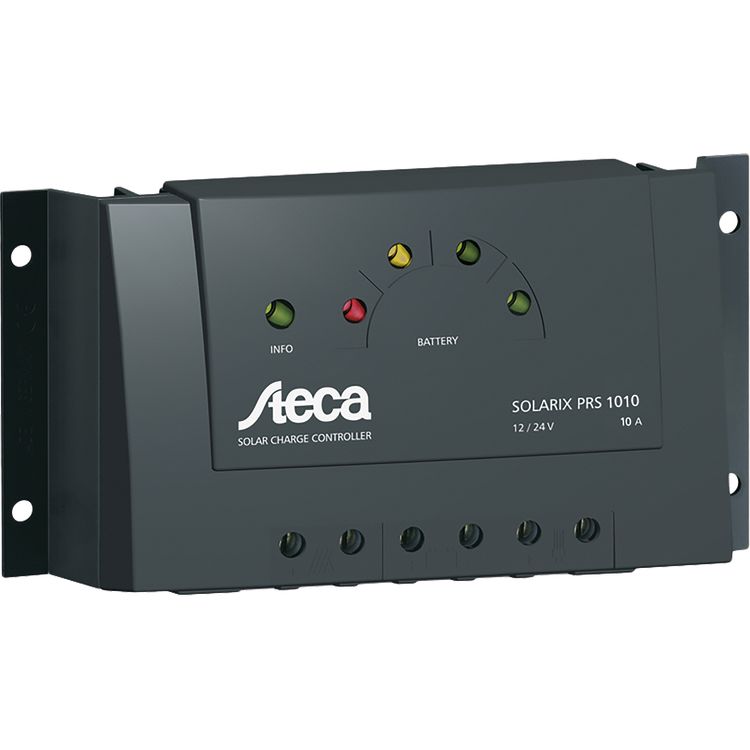

Steca Solarix 12v 24v 10 Amp PRS Series Solar Charge Controller

PRS-1010
Was: $100.70
Sale Price: $84.95
Free Priority Mail Shipping to USA *
Quantity

OR Simple-Click Checkout
In Stock
Share this item with your friends

Product InformationStore Part Number: PRS-1010

Overview

The Steca Solarix PRS-1010 charge controller is a simplistic high perfomance solar charge controller. Steca designed the Solarix line with a modern design featuring different colored LED lights to give you information regarding the state of charge.

The Steca PRS-1010 operates on the serial principle, which separate the solar module from the battery in order to protect it against overcharging. The Solarix PRS-1010 is designed to charge lead-acid batteries (Wet & AGM) or gel cell batteries without the need for complex configuration settings.

For larger projects, the charge controllers can also be equipped with special functions: e.g. with night light function and selectable charging plateau and deep-discharge protection voltages.

Features

  • Series controller
  • Automatic detection of voltage
  • Voltage and current regulation
  • PWM control
  • Multistage charging technology
  • Current compensated load disconnection
  • Automatic load reconnection
  • Temperature compensation
  • Common positive grounding or negative grounding on one terminal
  • Integrated self test

Tech Specs

  • Dimensions (LxWxH): 7.36 x 3.78 x 1.78 in
  • Weight: 0.77 lb
  • Shipping Weight: 2 lb
  • System Voltage: 12 V / 24 V
  • Battery Input Voltage: 9.0V - 17.0V / 17.1V - 34.0V
  • Max Module Input Short Circuit Current: 10A
  • Max Load Output Current: 10A
  • Max Self Consumption: < 4mA
  • End Of Charge Voltage (Float): 13.9V / 27.8V
  • Model: Solarix PRS-1010
  • Manufacturer: Samlex
  • Boost Charge Voltage, 1H: 14.4V / 27.8V
  • Equalisation Charge (Deactivated for Gel ACCU), 1H: 14.7V / 29.4V
  • Reconnection Setpoint (SOC;LVR): > 50% ; 12.4V ~ 12.7V / 24.8V ~ 25.4V
  • Deep Discharge Warning: < 40% ; 11.7V ~ 12.3V / 23.4V ~ 24.6V
  • Deep Discharge Protection (SOC;LVD): < 30% ; 11.2V ~ 11.6V / 22.1V ~ 23.2V
  • Ambient Temperature Allowed: -25°C to +50°C
  • Terminal Size (Fine / Single Wire): 16 mm²/25 mm²
  • Enclosure Protection Class: IP34 (Protected from water spray from any direction.)
  • Warranty: 2 Year Limited Warranty
  • Manufacturer Part #: PRS-1010
  • Made In: EU (Europe Union)
